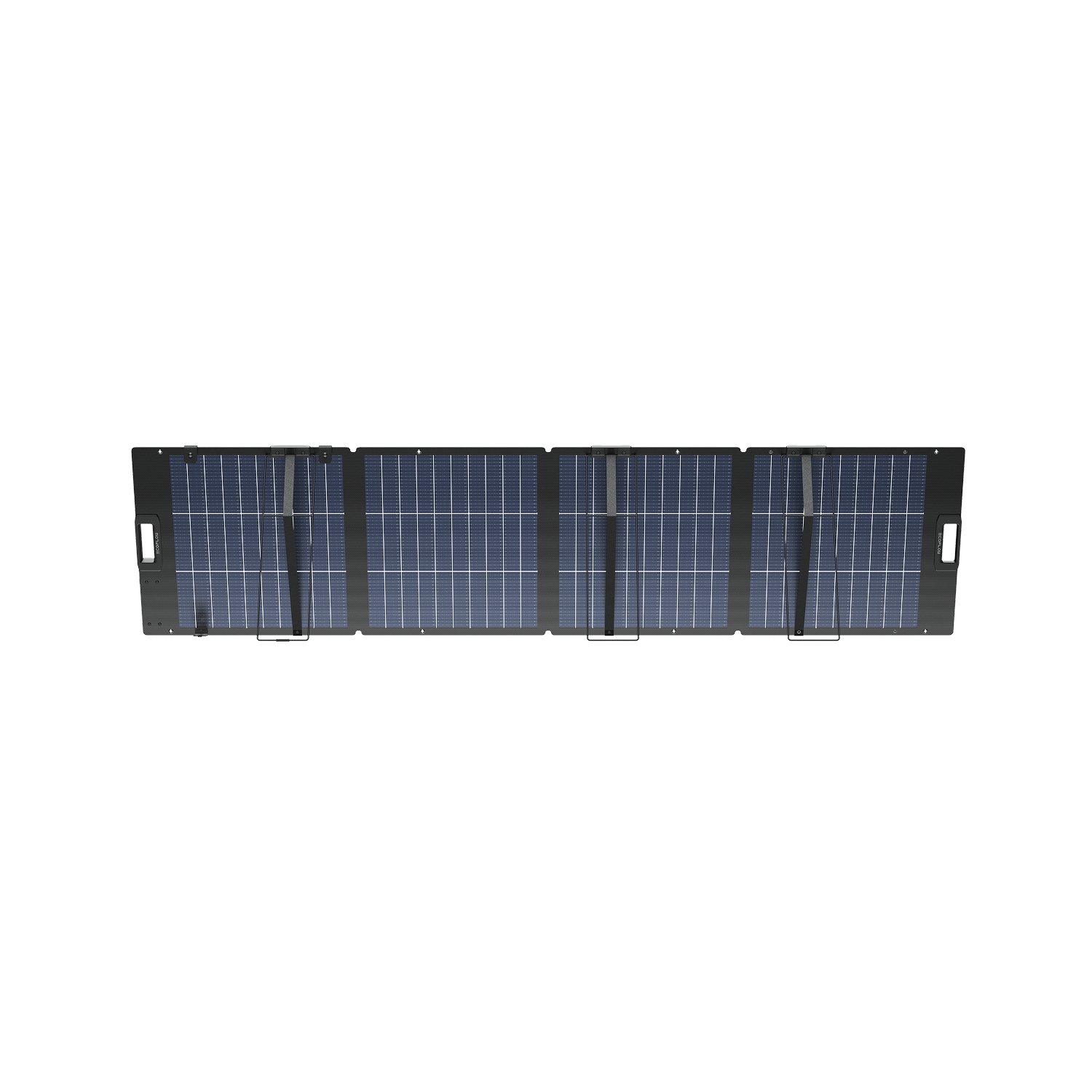

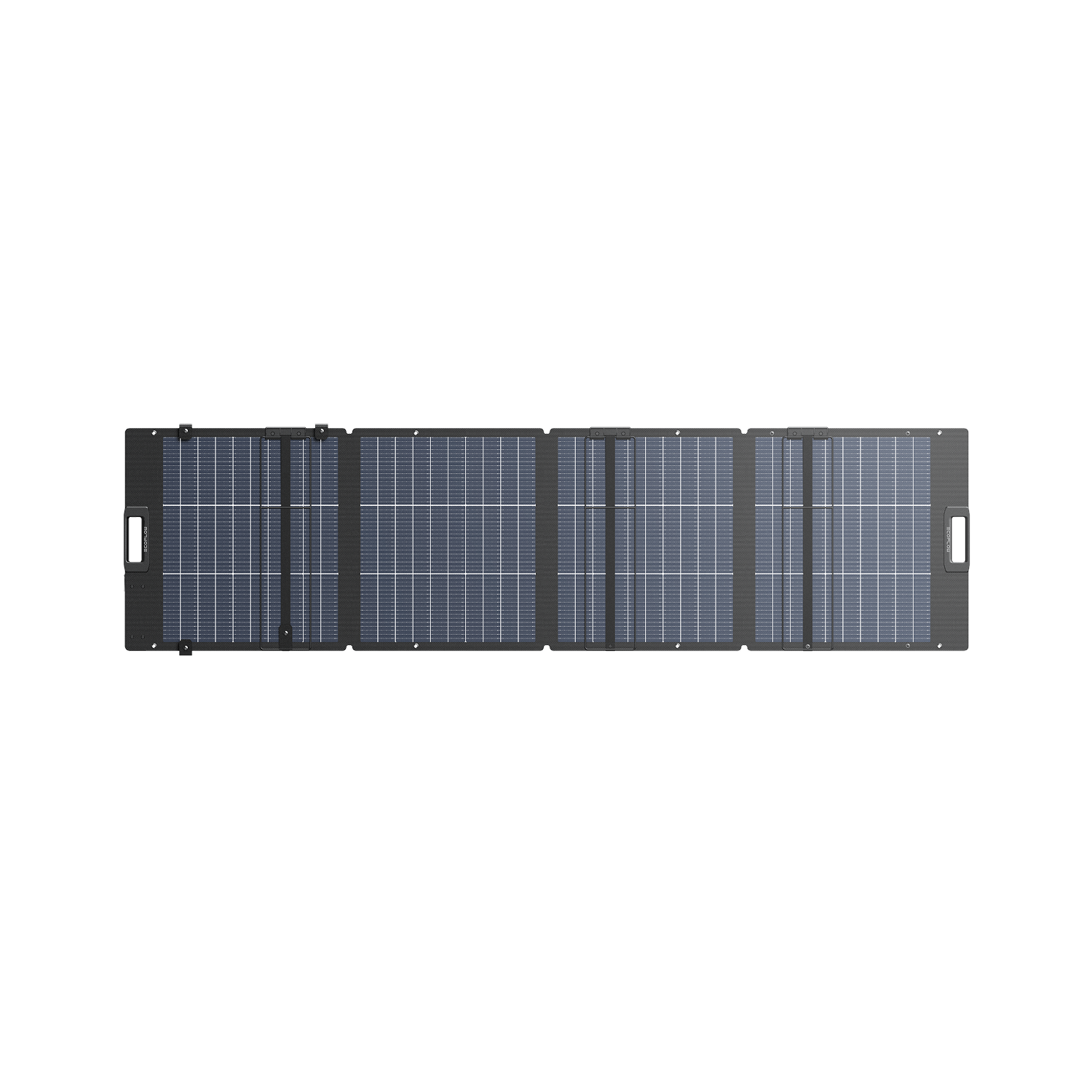

EcoFlow 220W Lightweight Portable Solar Panel

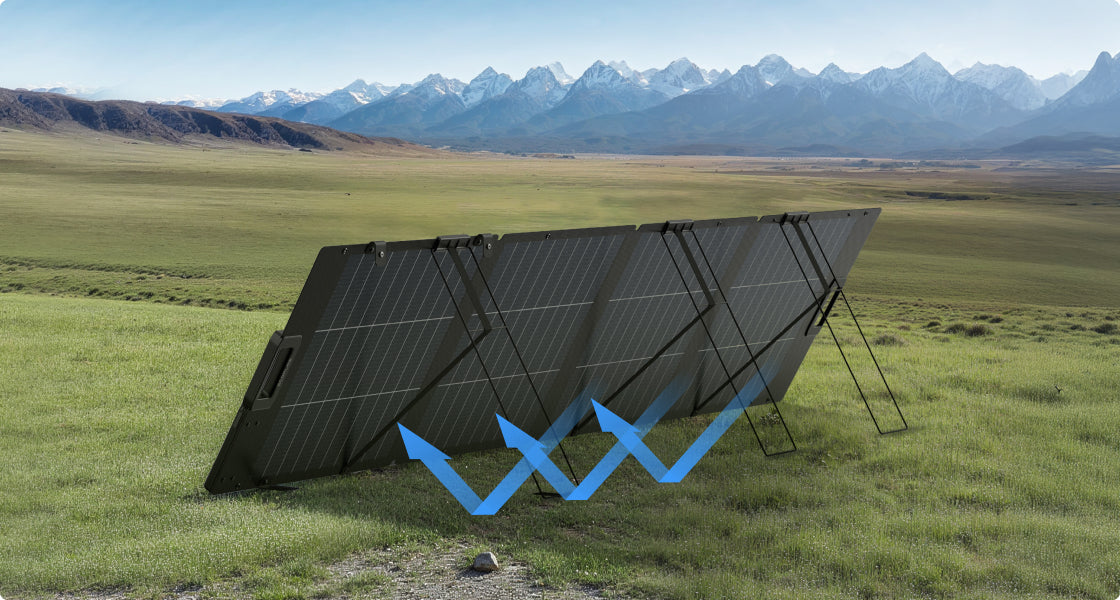

Capture More Energy with Bifacial Design
With primary and rear-side panels for ambient light, output power reaches up to 243W under BNPI test conditions, generating more power from the same amount of sunlight compared to traditional monofacial panels. With industry-leading TOPCon solar technology, the portable solar panel achieves a top-level conversionrate of up to 25%, recharging your power station even faster.

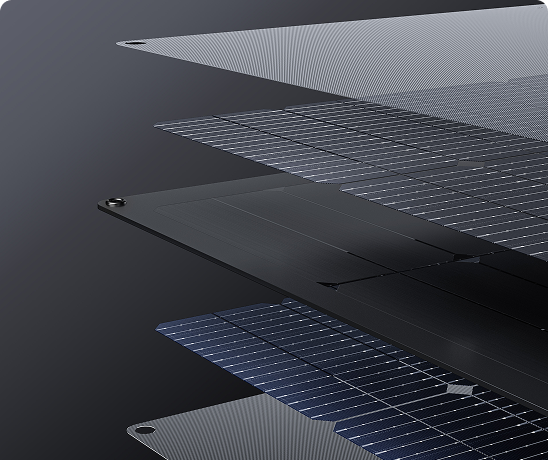

Ultra-Portable Design
Engineered with advanced lightweight materials, this next-gen solar panel weighs 5.1 kg, 46% lighter than the 220W Bifacial Portable Solar Panel, enabling effortless transport and compact storage.

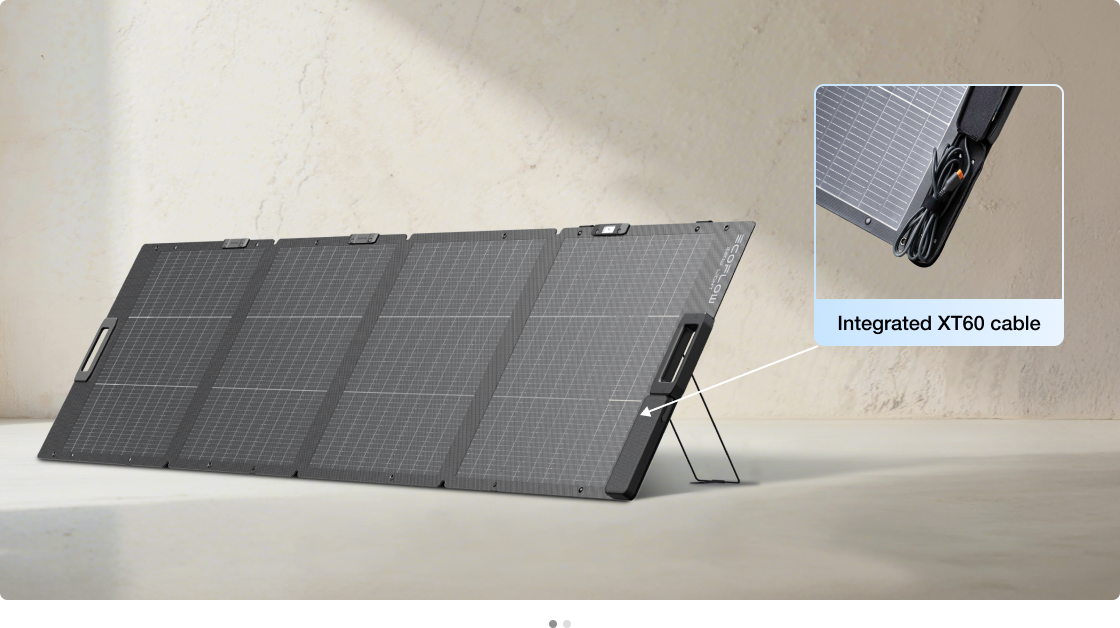

Built-in XT60
The integrated XT60 cable makes it easier to store and connect to portable power stations for a faster setup.
Built-in XT60
The integrated XT60 cable makes it easier to store and connect to portable power stations for a faster setup.

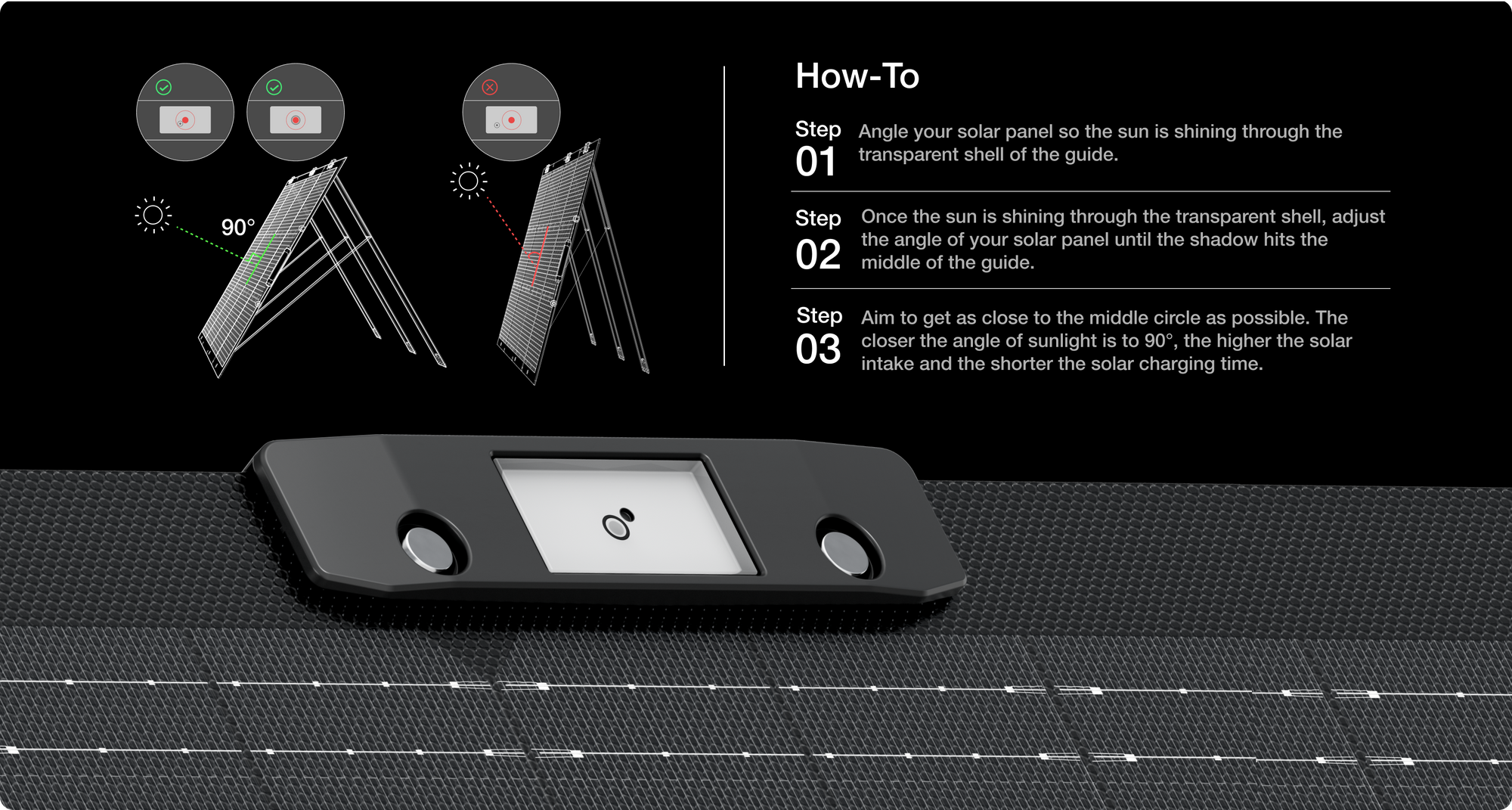

Integrated Solar Angle Guide
Keep sunlight at a 90° angle and concentrate the sun's rays onto the surface of your solar panel to get the most light at all times.

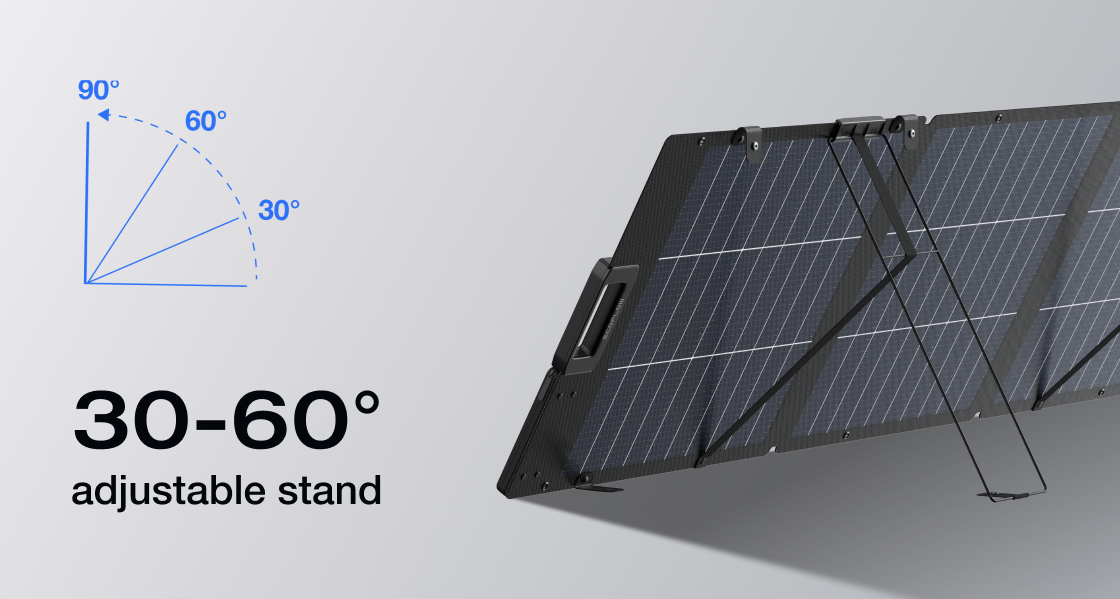

Suitable for Various Environments

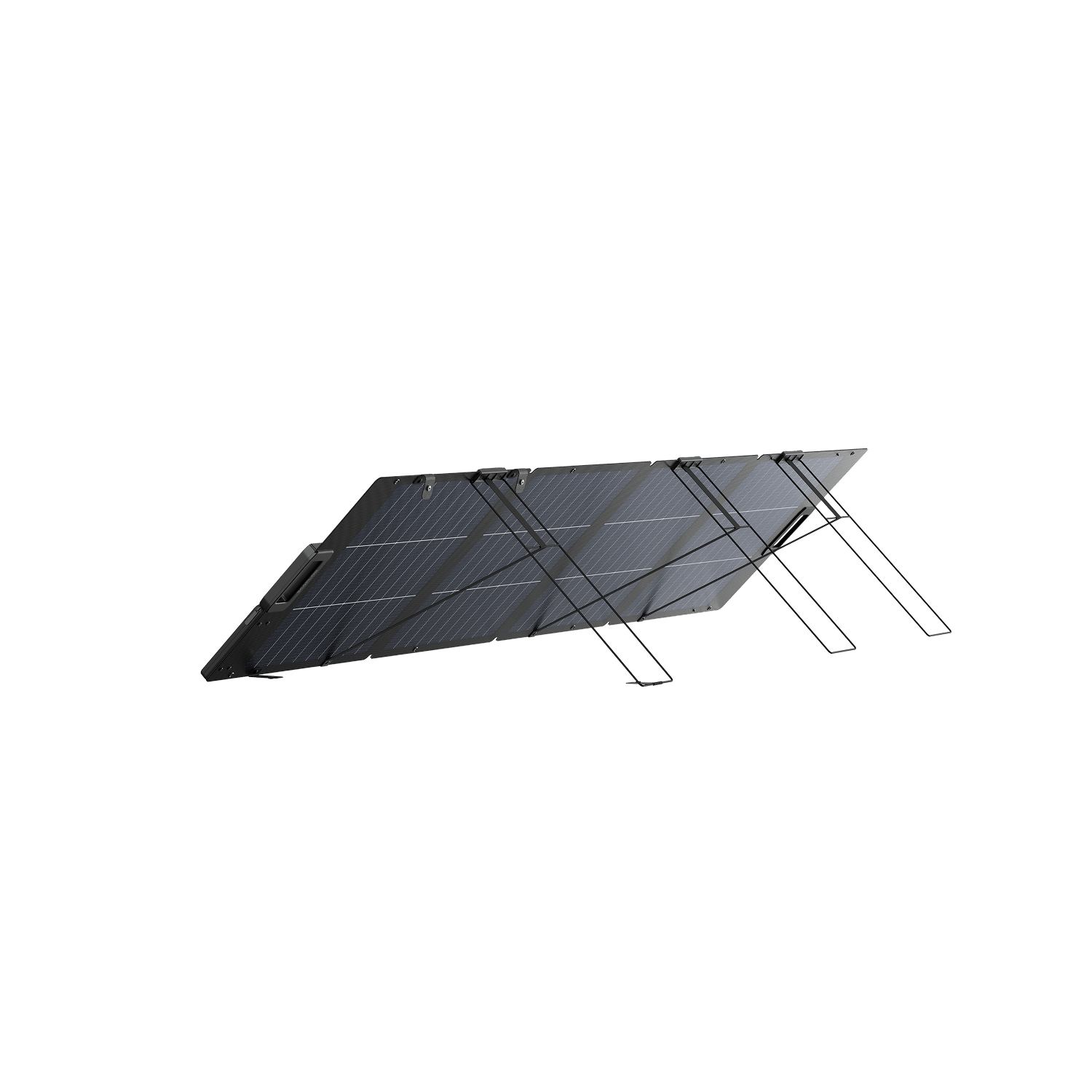

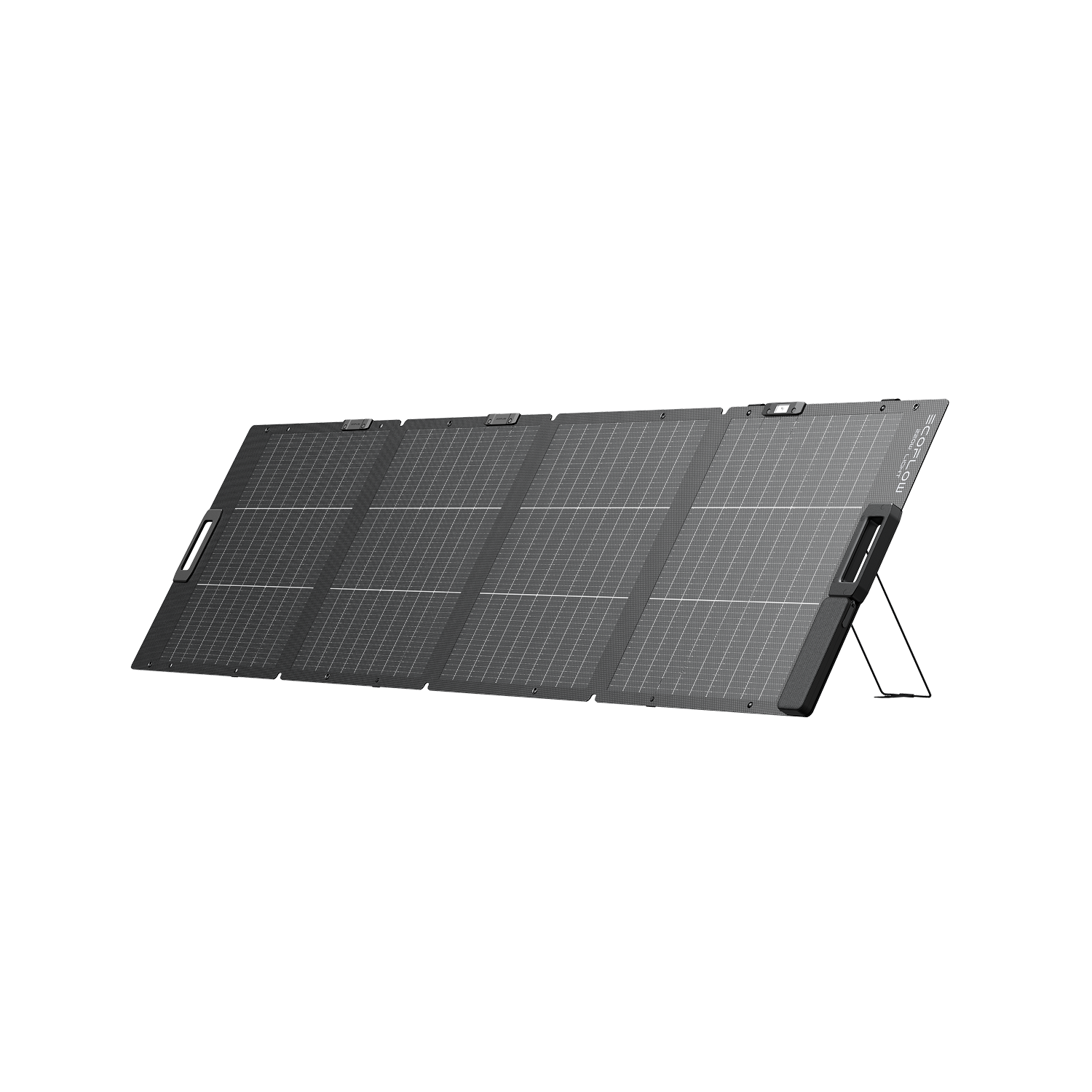

The folding integrated bracket offers a convenient and compact design. Adjustable from 30°-60°, it's ideal even for most high-latitude areas.
* If you need to hang solar panels for extended periods, please use rigid solar panels. Lightweight portable solar panels are not recommended for this scenario.

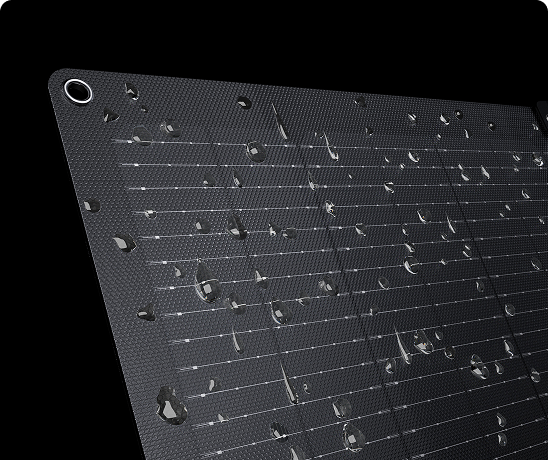

Durable and Water-Resistant
Built to Weather the Storm
With an IP68 water-resistance rating, our 220W Lightweighht Portable Solar Panel maintains its high performance even when in contact with water. You can safely recharge in wet conditions, such as seaside or on a boat.
No Overheating
Designed to withstand high temperatures while still ensuring high levels of solargeneration.
5-Year Warranty

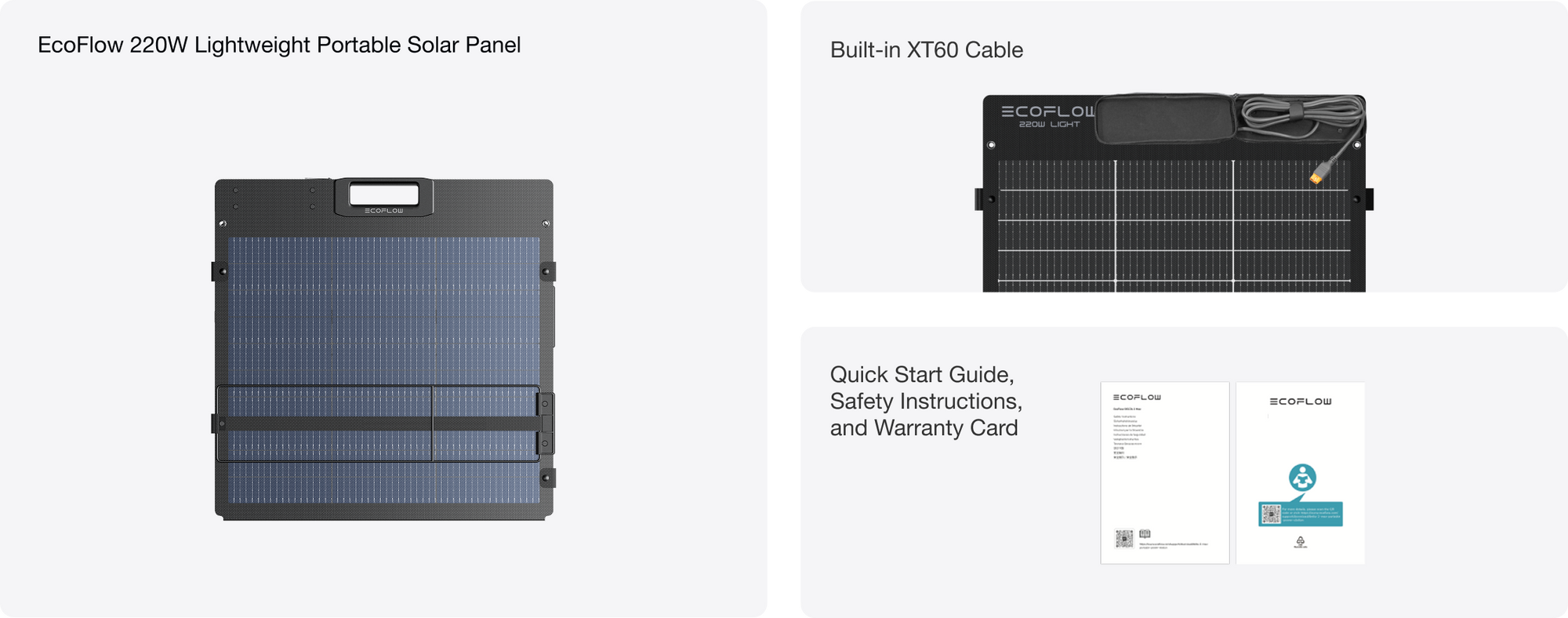

What’s in the box
Specs
Rated Power
STC 220W/ BNPI 243W
Cell Type
N Type TOPCon monocrystalline silicon
Efficiency
25%
Weight (Solar Panel)
5.1kg±0.3kg
Dimensions
2270mm*598mm*26mm
Folded: 603mm*598mm*36mm
Connector Type
XT60
Built-in cable length: 8.20 feet
Warranty
5 Years
Open Circuit Voltage
STC Voc 21.4V (Vmp 18.8V)
BNPI Voc 21.4V (Vmp 18.8V)
Short Circuit Current
STC Isc 12.2A (Imp 11.7A)
BNPI Isc 13.5A (Imp 12.9A)
Waterproof & Dustproof
IP68
FAQ
The above specifications were measured and recorded in constant, controlled lab conditions. The solar panel's actual power will be affected by a number of factors, including but not limited to sunlight intensity, the angle of sunlight hitting the panel (the ideal being 90 degrees), cloud cover, or contaminants such as dust. When testing your solar panel, please make sure to do so in bright sunny conditions and without any shade falling on the panel. Additionally, please note that some portable power stations have limits on maximum power input. This means that even in bright sunny conditions, the solar panel's power output cannot exceed this input limit.
The optimal operating voltage is 18.8V, and the optimal operating current is 11.7A.
The solar panel has an XT60 connection cable, and the maximum output voltage is 21.4V. When using the solar panel with EcoFlow portable power stations, we recommend making sure that the solar panel's output current (voltage) should be lower than the portable power station's input current (voltage).
No extension cable currently available to purchase can be used together with this solar panel.
It is not recommended to use this solar panel together with panels of other brands. This is to avoid potential safety issues caused by incompatibility or parameter mismatches. Please always use this product as instructed in the user manual.
After the solar panel is unfolded, the integrated sundial adjusts the support angle based on the shadow cast by the pointer, specifically by the shadow cast on the lower part when sunlight shines on the black spot. The position and angle of the panel are adjusted to make sure the shadow falls on the circle on the lower part. This represents the panel's optimal installation angle and position, which enables maximum sunlight capture and device efficiency.
These can be used together with suction cups and cable ties to hang the solar panel. To prevent damage or deformation to these holes from external pressure or heat, it is recommended to use multiple holes at the same time and not to use them for extended periods of time.
Use a soft brush to remove dust and dirt from the surface, then wipe the surface again with a damp cloth to remove any residual debris. Remove any bird excrement or other debris that may get stuck on the panel surface as soon as possible, to avoid any performance issues.
182.2 mm*183.75 mm N-type TOPCon cell
