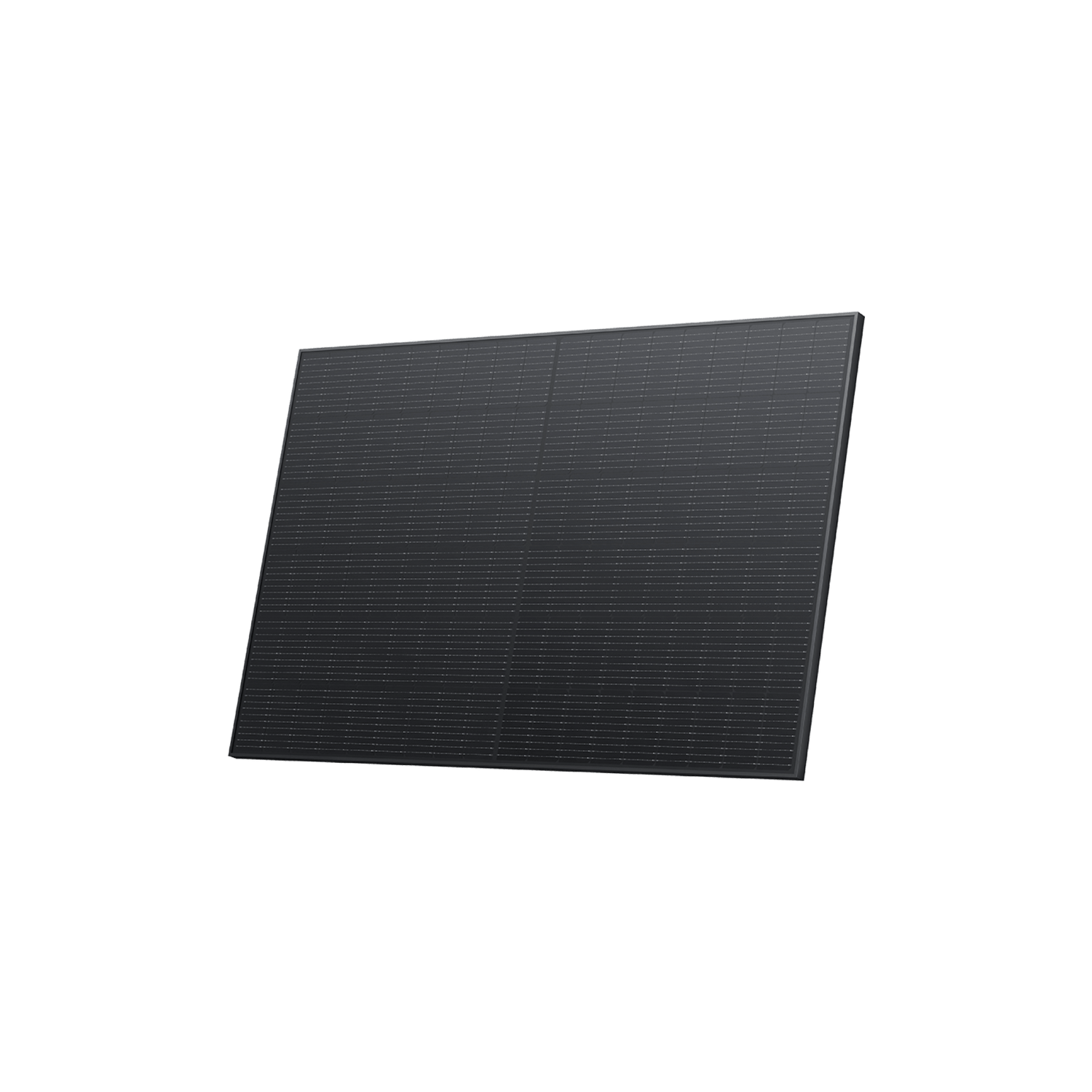

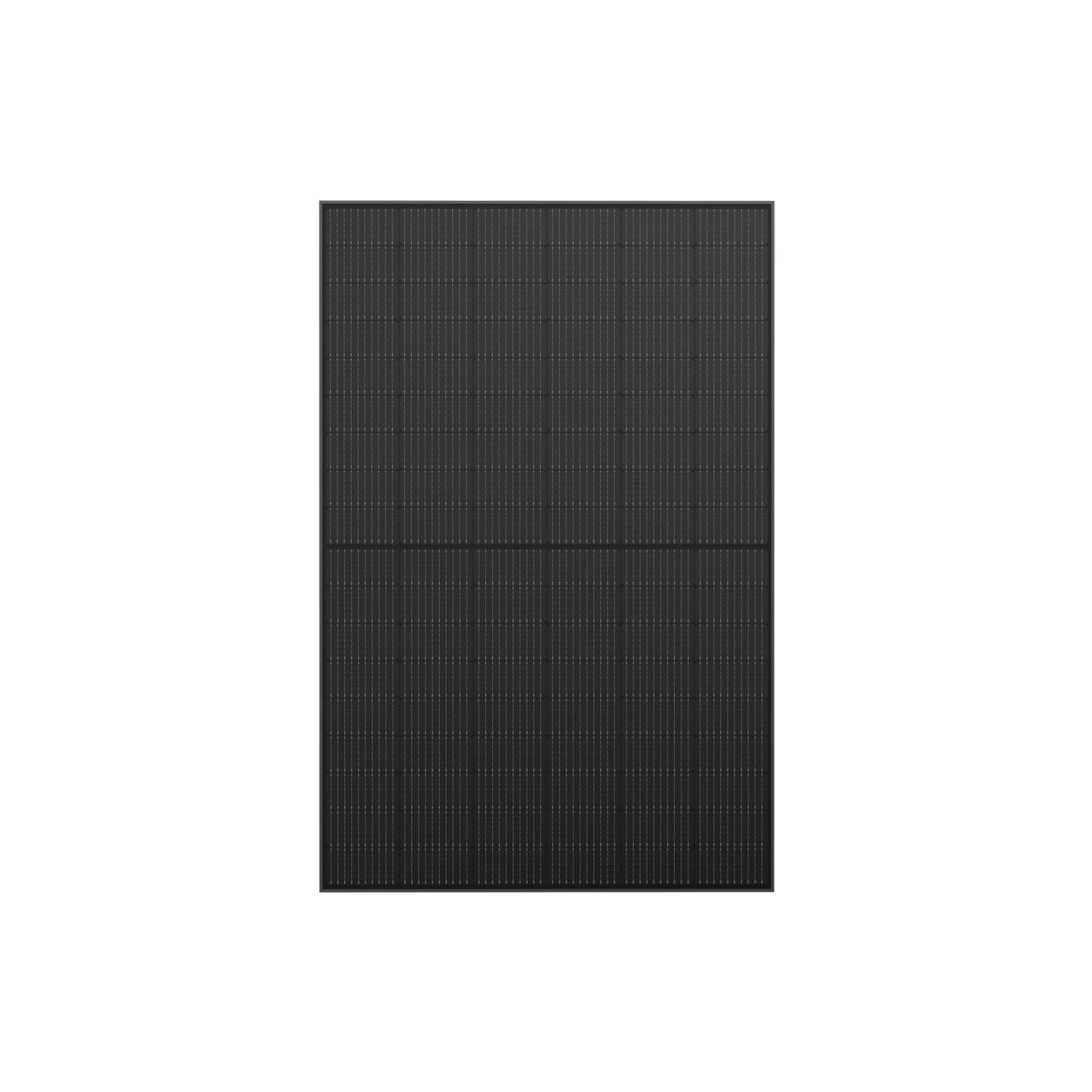

EcoFlow 100W Rigid Solar Panel

Regular price
$359.00
Sale
$359.00
Regular price
$449.00
Sold out
Unit price
per

As low as $88/mo or 0% APR.

Option

  • 2x 100W Rigid Solar Panel + 2x Rigid Solar Mounting Feet
View cart



Fast Charging - Using cutting-edge cell technology, the 100W rigid solar panel has a high conversion efficiency rating of up to 23%, charging your Power Kits batteries in record time.

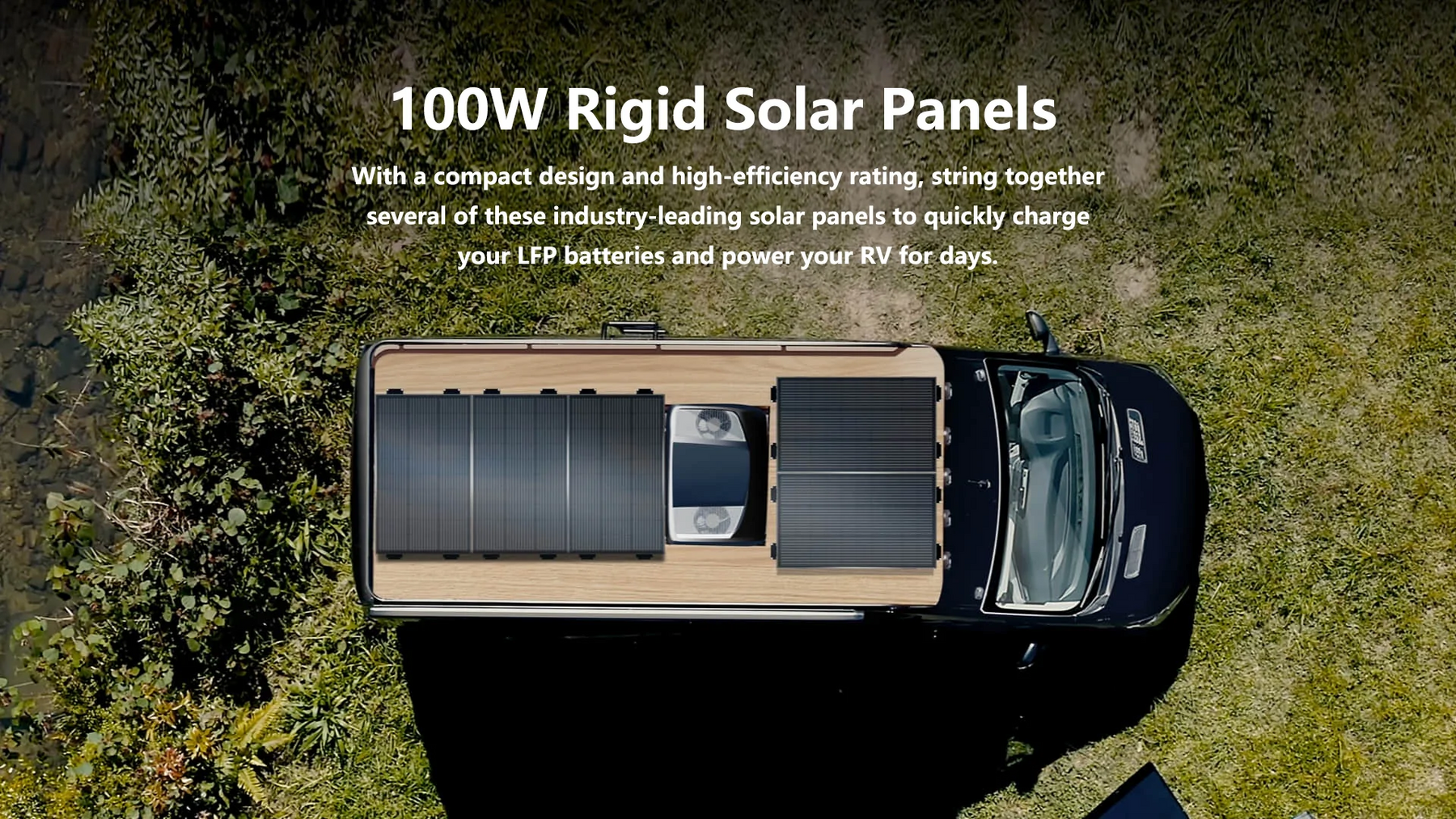

Installation-ready - Pre-drilled slots around the panel's edge make it convenient to mount securely on your van's roof.

Weatherproof & Durable - The rigid panel balances design with robust materials allowing the panel to weather any storm while still offering the same excellent performance and aesthetics for years.

Universally compatible - With an all-inclusive solar connector, the 100W rigid panel works with other 3rd party solar systems and power stations.

Learn more about DELTA Max Bundle >>>

Customer reviews

4.0 563 Reviews
  • 5 star
    75%
  • 4 star
    60%
  • 3 star
    10%
  • 2 star
    8%
  • 1 star
    1%
100% secure shopping
Reliable warranty
Free shipping

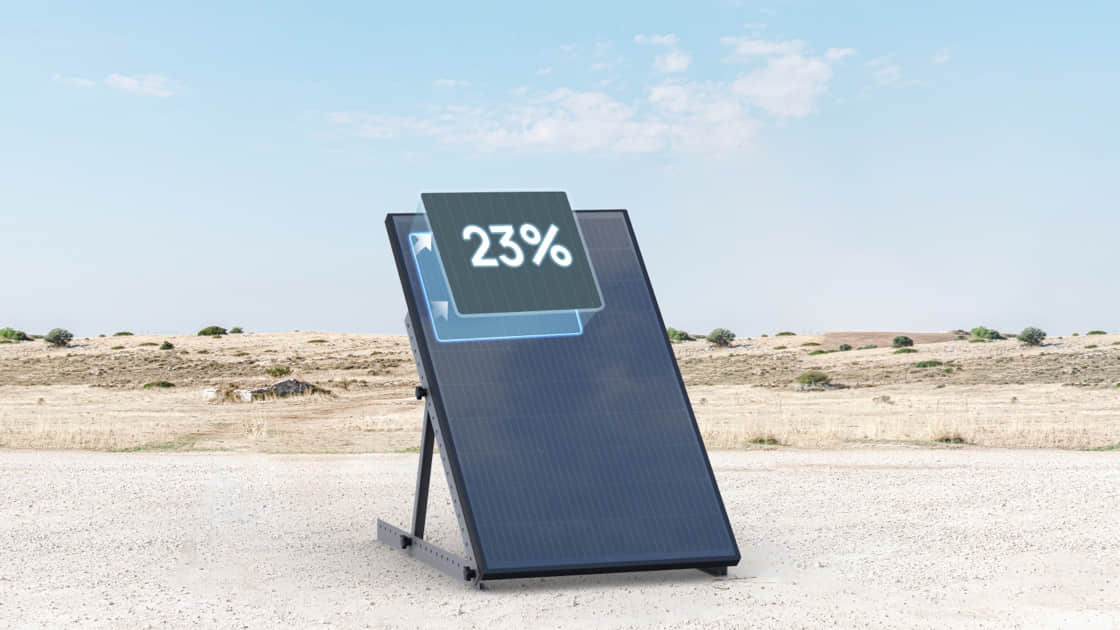

Use Highly Efficient Monocrystalline Cells

Charge Faster with High Solar Conversion

Our 100W rigid solar panel has an excellent conversion rating of 23%, allowing you to charge even faster. Combine as part of your Power Kits setup or EcoFlow portable power station, and the integrated MPPT algorithm optimizes your solar input.

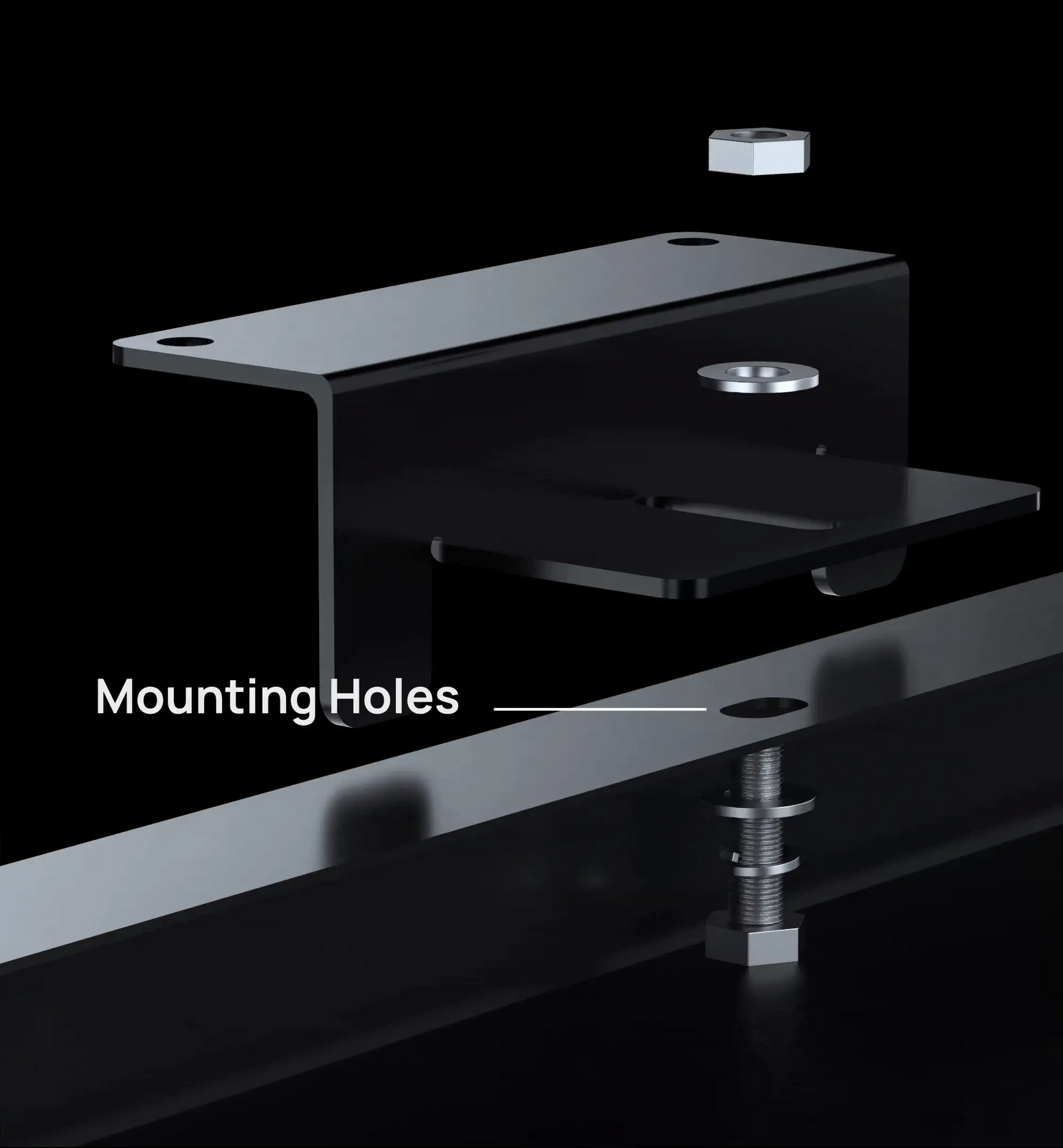

Pre-Drilled Slots on Solar Panel for Secure Mounting

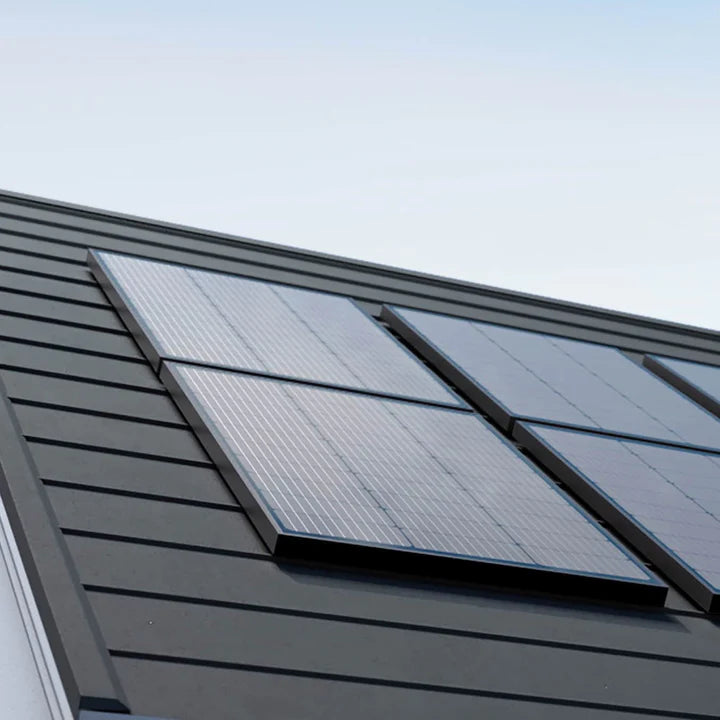

Ready to Install on Your Surfaces

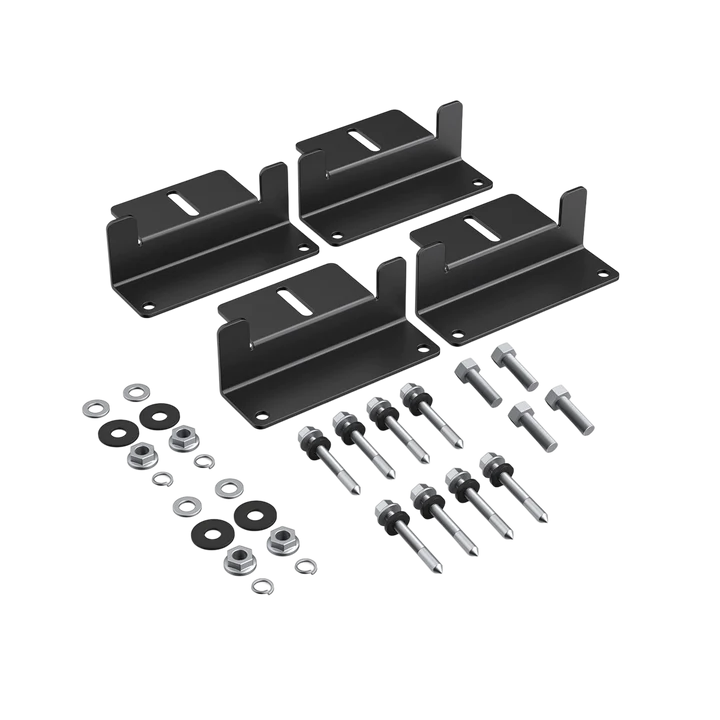

With pre-cut holes on the panel, the 100W rigid panel is ready to mount on your van or off-grid build. Pair with the 100W Rigid Solar Panel Mounting Feet for a secure attachment to any surface.

IP68* Waterproof Rating

Stand Through All Weather

Our 100W rigid solar panel is designed for outdoor weather. With an IP68* waterproof rating, the panel can withstand dirt, low-pressure water jets, extreme winds of up to 130 mph, and even heavy snowfalls.
*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)

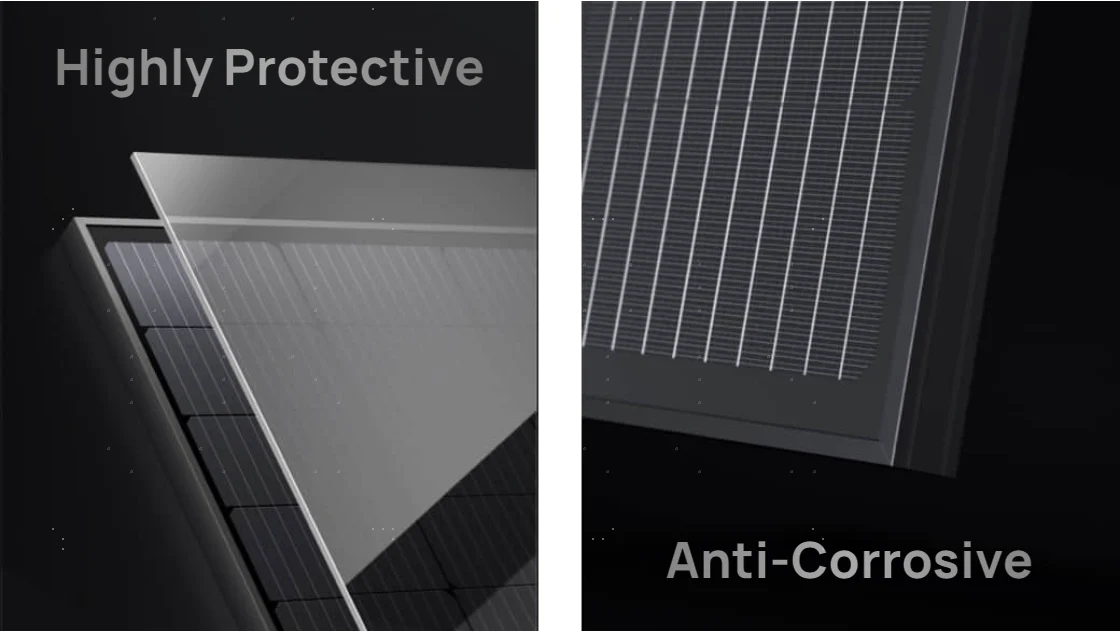

Coated with Highly Protective Lamination and Tempered Glass

Durable Structure Design for Long-Lasting Performance

Built with a robust anti-corrosive aluminum frame, our 100W rigid solar panel is designed for maintaining solar collection outdoors for years. Its monocrystalline cells are coated with highly protective lamination and tempered glass to enhance performance and offer long-lasting durability.

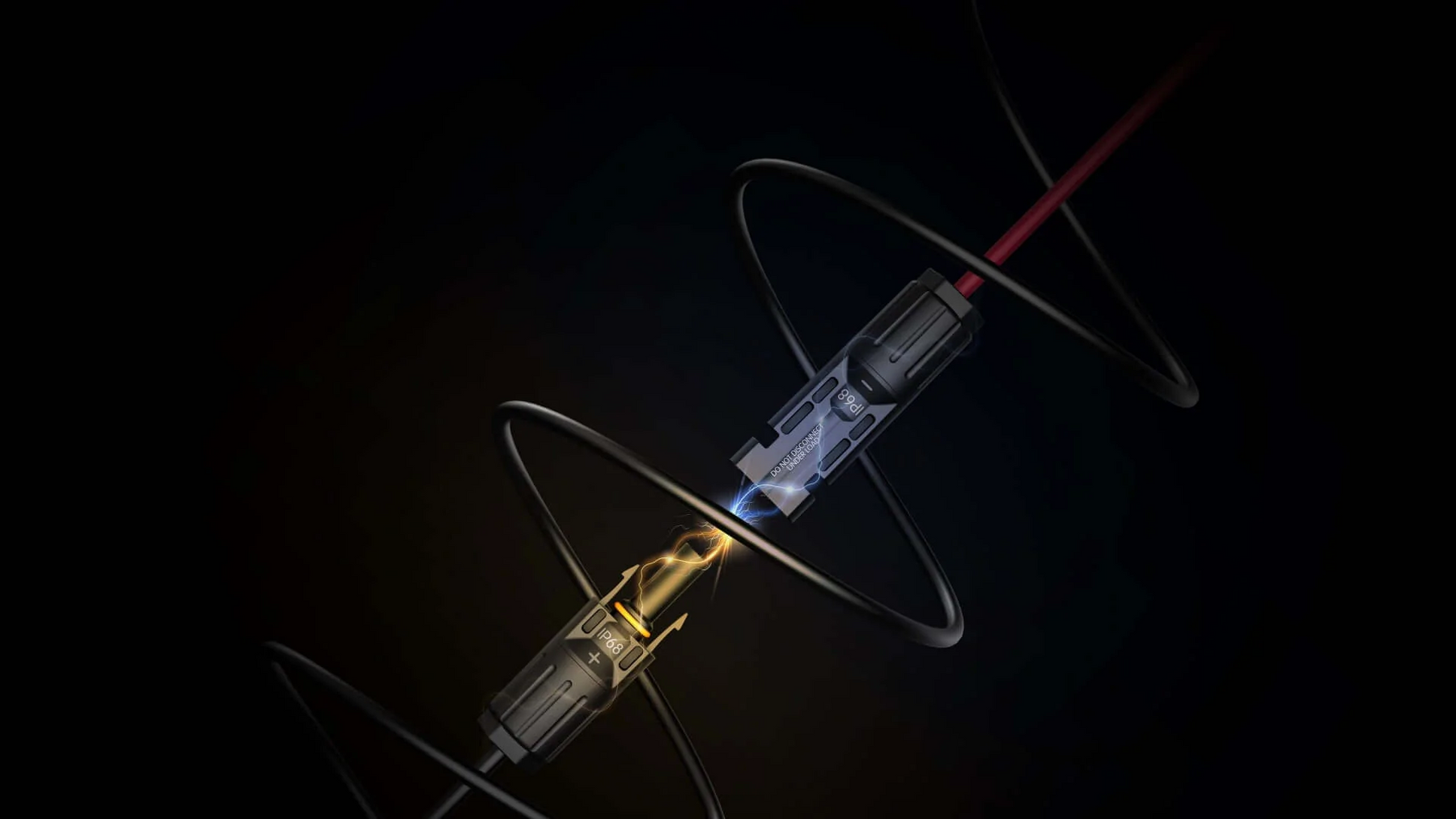

Solar Cable for Universal Compatibility

Connect with Your Power Systems at Ease

Using an all-inclusive solar connector, our 100W rigid solar panel can be readily connected with any of your existing third-party solar systems. You can charge up 48v power systems and portable power stations with one or multiple panels.

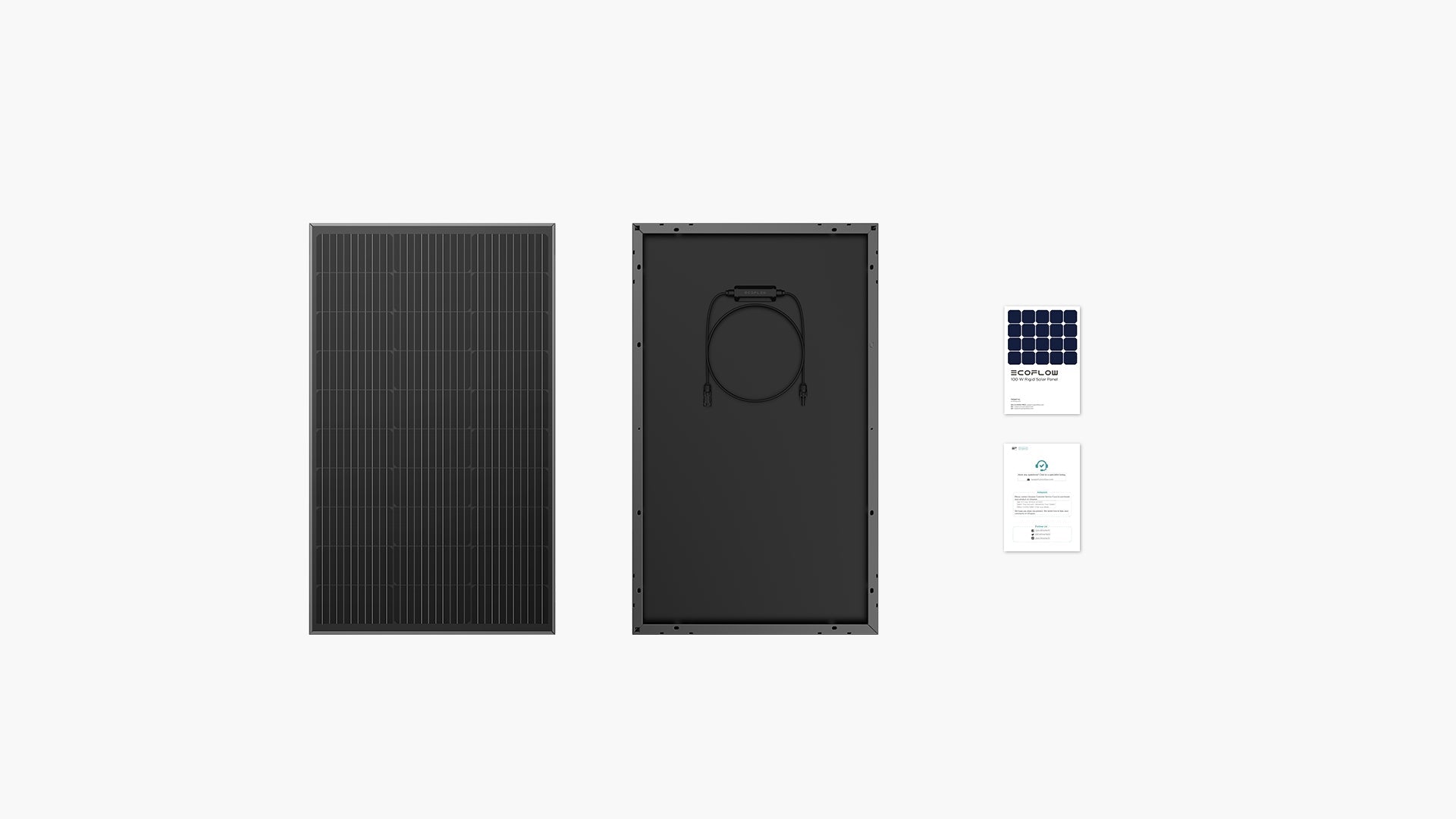

What's in the box

1. 2×100W Rigid Solar Panel 2. User Manual and Warranty Card

*The solar to XT60 charging cable is included in EcoFlow portable solar panels.

Frequently Asked Questions

Yes, you can use EcoFlow 100W Rigid Solar Panels in series, but a mixed series connection is not recommended. Please read the instructions in the User Manual carefully, paying particular attention to the limitations on solar panel output. For example, the mixed series connection of solar panels with different circuit currents will release their power insufficiently and cause a 1+1<2 effect.
This depends first and foremost on weather conditions. Generally speaking, on a clear day with no clouds in the sky, sunlight hitting the panel at a 90° angle usually generates 70 W–80 W of power in the 100 W panel (current light conditions are normally 800–900 W/m2 (74.3–83.6 W/ft2) with a panel temperature of 50°C (32°F) under test conditions. Nominal power ratings are based on 1,000 W/m2 (92.9 W/ft2) in AM1.5 conditions with a panel temperature of 25°C under test conditions. Power output figures close to nominal values were normally observed in the midday sun during the winter).
In most cases, it is normal for a solar panel to not deliver its full nominal power. Some of the reasons why this happens, as well as some suggestions for getting closer to the nominal power figure, are given below.
1. Light Intensity. The amount of light shining on the panel will result in fluctuations to the power output. You are more likely to achieve nominal power output figures closer to those obtained under test conditions when using the product on a clear day during the midday sun, than when using the product in the morning or later in the afternoon. Weather conditions will also affect the amount of sunlight that shines on the panel. For example, you are much less likely to achieve the figures for nominal power in hazy, cloudy or rainy conditions.
2. Surface Temperature. The temperature of the solar panel surface will also affect the amount of power generated.The lower the surface temperature of the panel, the more power will be produced. For example, solar panels generate more power when used during the winter than during the summer, and this is completely normal. Solar panels generally reach temperatures close to 60°C (140°F) during summer. This reduces nominal power by 10–15%, despite the higher levels of light shining on the panel.
3. The Angle of the Sunlight. Under good lighting conditions, the solar panel is able to stay where light hits perpendicular to the surface to achieve better light performance. However, most solar panels installed on the roof of an RV can only be installed in a tiled configuration, which prevents the panel(s) from being installed at the optimal angle, and this difference will result in a power output loss of approximately 5%-15%.
4. Panel Shading. The surface of the solar panel should not be shaded during use. Shading caused by shadows,foreign objects and glass can all greatly reduce power output.Performance Issues caused by Malfunctioning Panels: If the panel still isn't generating power or its output remains far below expected nominal power figures after addressing the issues above, there may be an issue with the panel itself. Please contact Customer Support for assistance.
The operating temperature of the solar panel is -20°C to 85°C (-4°F to 185°F). Please read the product's manual carefully before use. Solar panels are made of monocrystalline silicon wafers. During installation and use, please do not slam the panels on the ground, step on them, strike them with foreign objects, or sit on their surface as such actions may cause the monocrystalline silicon wafers to crack, which will affect your use.Damage caused by human force is not covered by the free warranty.
Yes. There can be a lot of dust and foreign objects on the surface of the solar panel after the panel has been used outdoors for a long time, which block the light to a certain extent, reducing the power output. Regular cleaning can help keep the surface of the solar panel clean and free from obstructions and generate a higher power output.
Yes. Connecting panels in parallel increases power through doubling the current. The maximum number of 100W panels allowed in a parallel connection depends on the controller and energy storage equipment of your recreational vehicle. Please ensure that the energy storage system used in your vehicle supports a higher input current, and you should use wires with a diameter suitable to the output current to securely connect the panels in parallel.

Specs

Solar Panel Weight

Approx. 6.2 kg(13.7 lbs)

Dimensions

98*58.6*3 cm(38.6*23.1*1.2 in)

Rated Power

100 W(+/-5W)

Open Circuit Voltage

20.3 V

Short Circuit Current

6.3 A

Maximum Operating Voltage

17.1 V

Maximum Operating Current

5.9 A

Temperature Coefficient of Rated Power

-0.39%/°C

Temperature Coefficient of Open Circuit Voltage

-0.33%/°C

Temperature Coefficient of Short Circuit Current

0.06%/°C

Maximum System Voltage

600 VDC(UL)

Maximum Fuse Current

15 A
