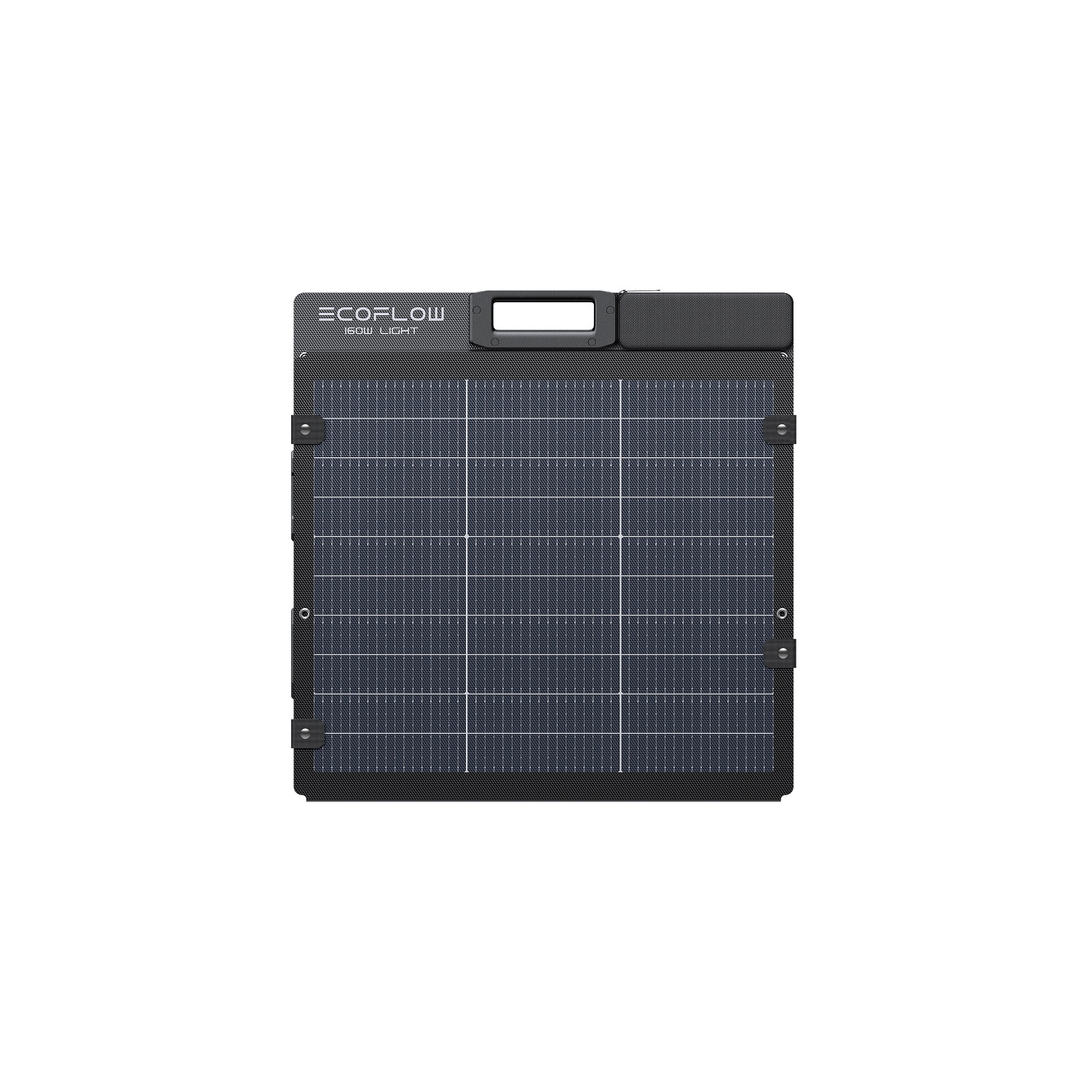

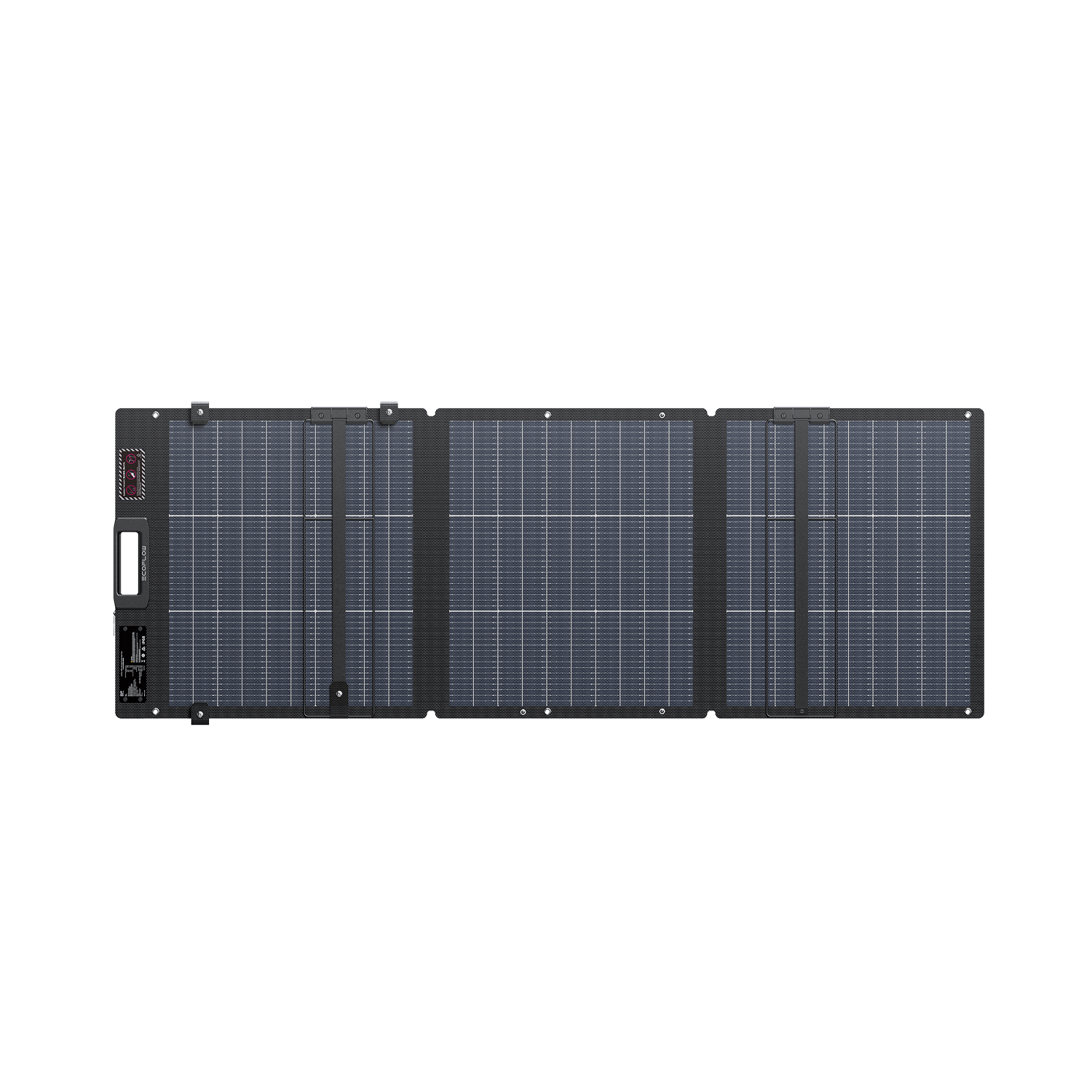

160W Lightweight Portable Solar Panel
Ultra-Portable Design
Engineered with advanced lightweight materials, this next-gen solar panel weighs 3.8 kg (1.8 kg lighter than previous models) for effortless transport and compact storage.

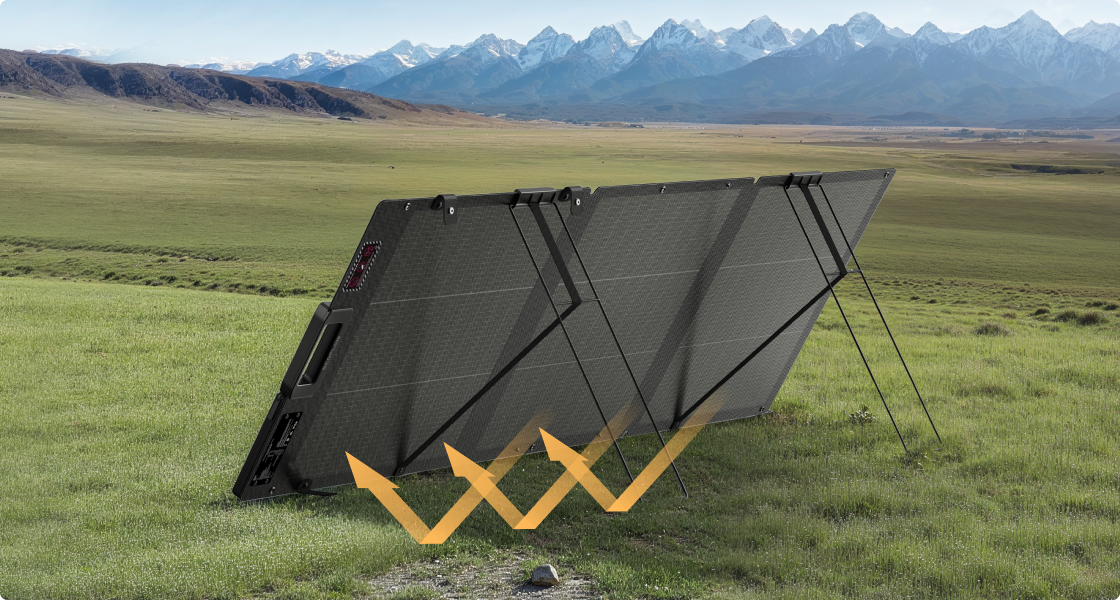

Capture More Energy with a Bifacial Design
With a primary panel and rear-side panel for ambient light, output power reaches up to 177W under BNPI test conditions, generating more power from the same amount of sunlight compared to traditional monofacial panels. With industry-leading TOPCon solar technology, this portable solar panel achieves a top-level conversion rate of up to 25%, recharging your power station even faster.

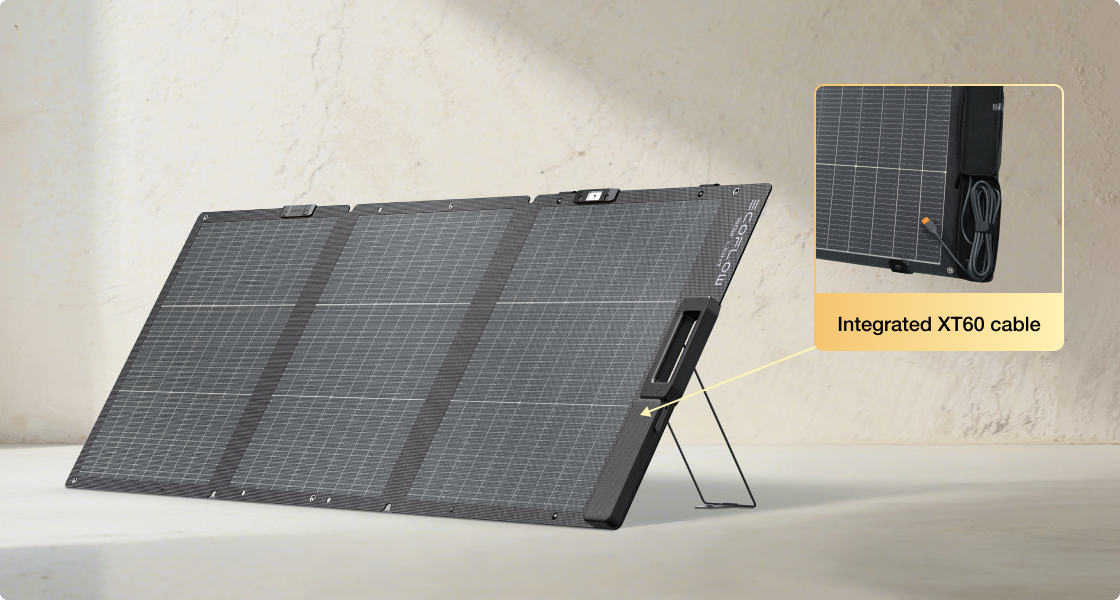

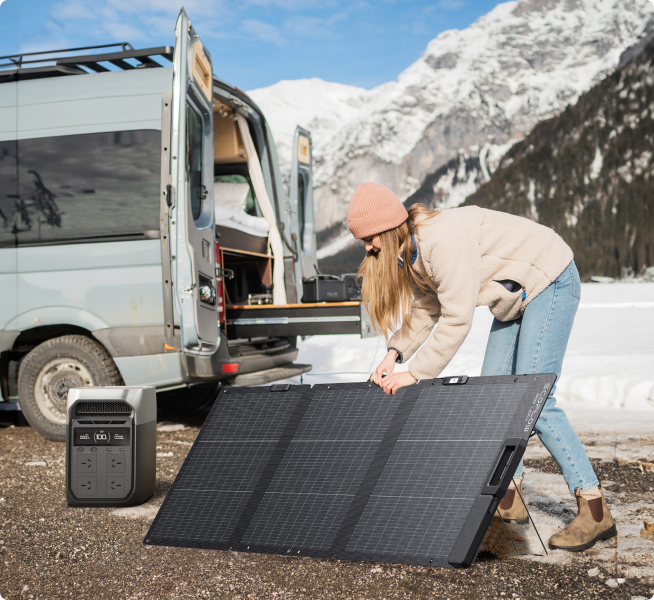

Built-in XT60
The integrated XT60 cable makes it easy to store and seamless to connect to portable power stations for a faster setup.

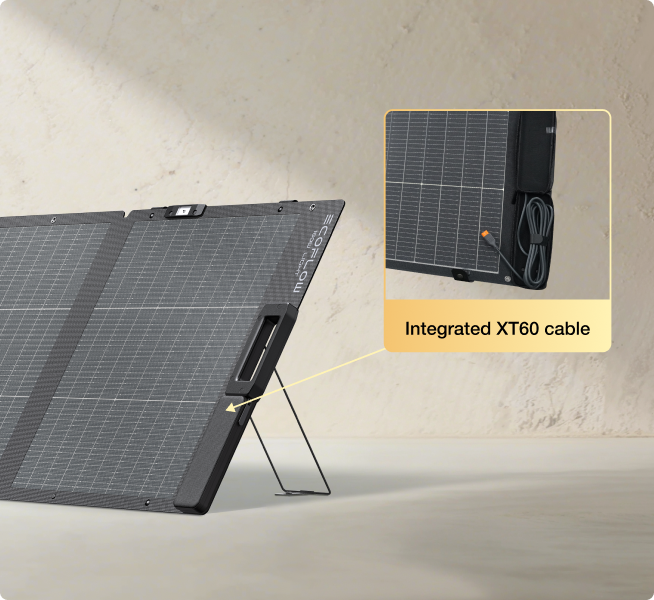

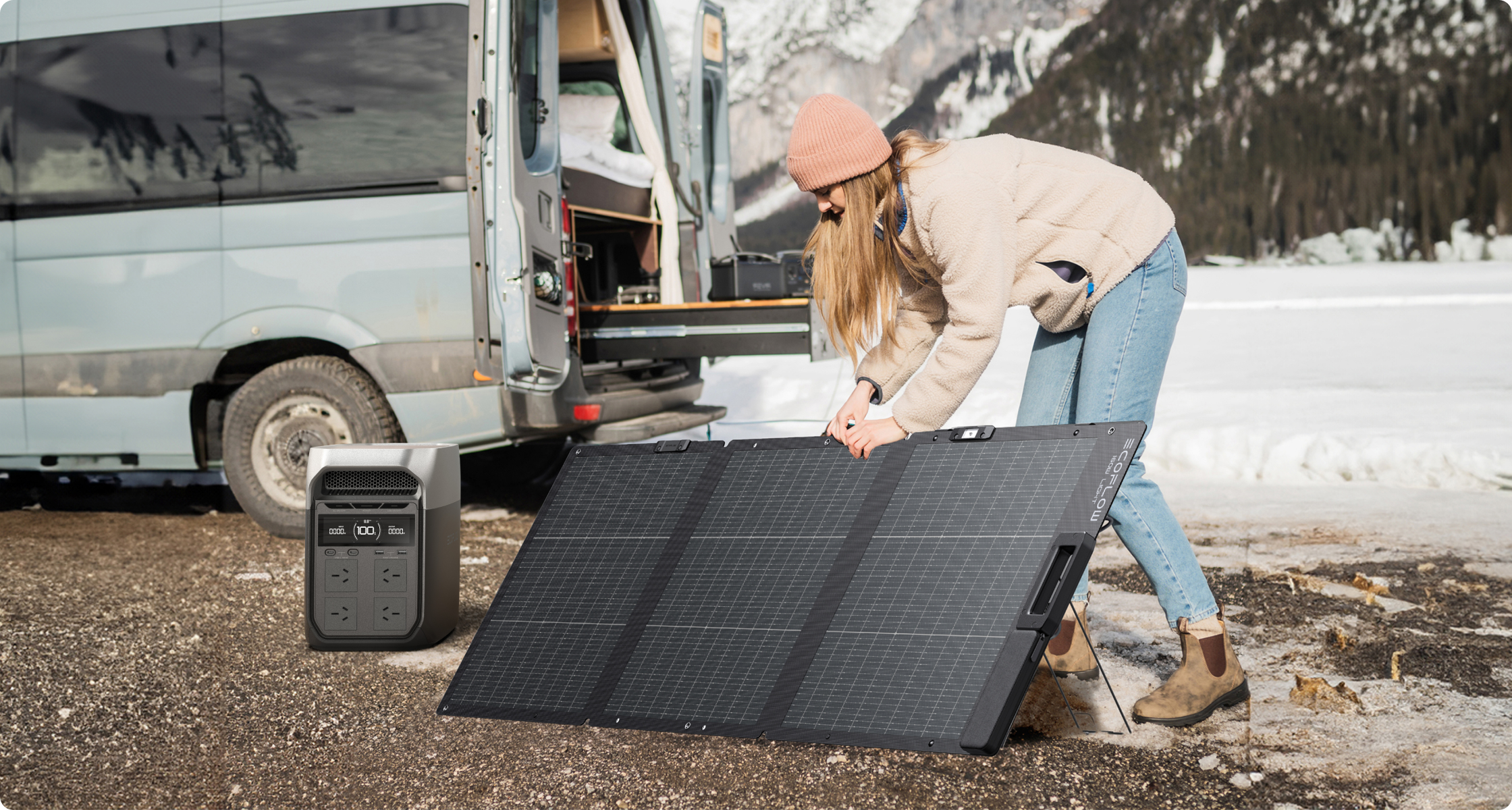

Built-in XT60
The integrated XT60 cable makes it easy to store and seamless to connect to portable power stations for a faster setup.

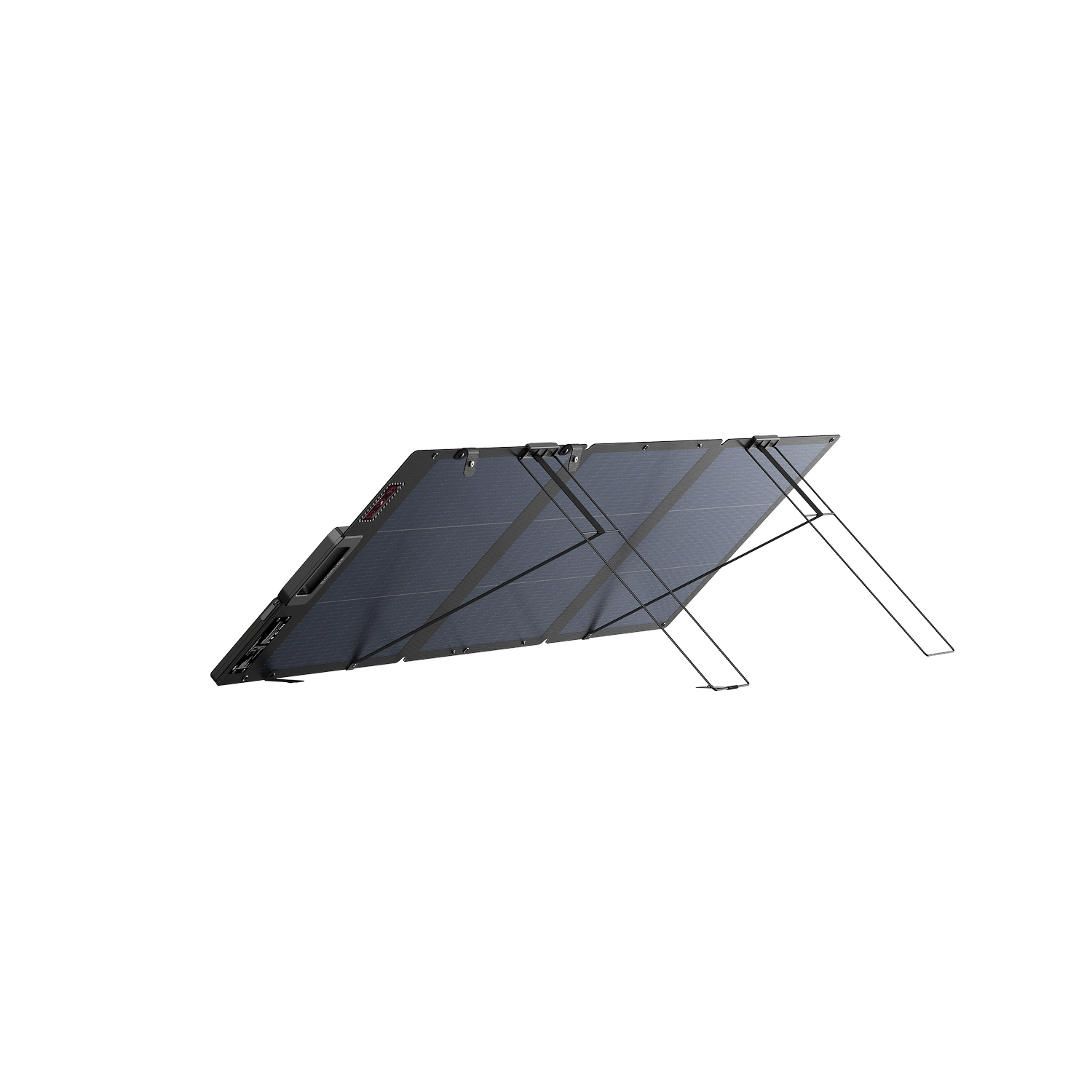

Suitable for Various Environments

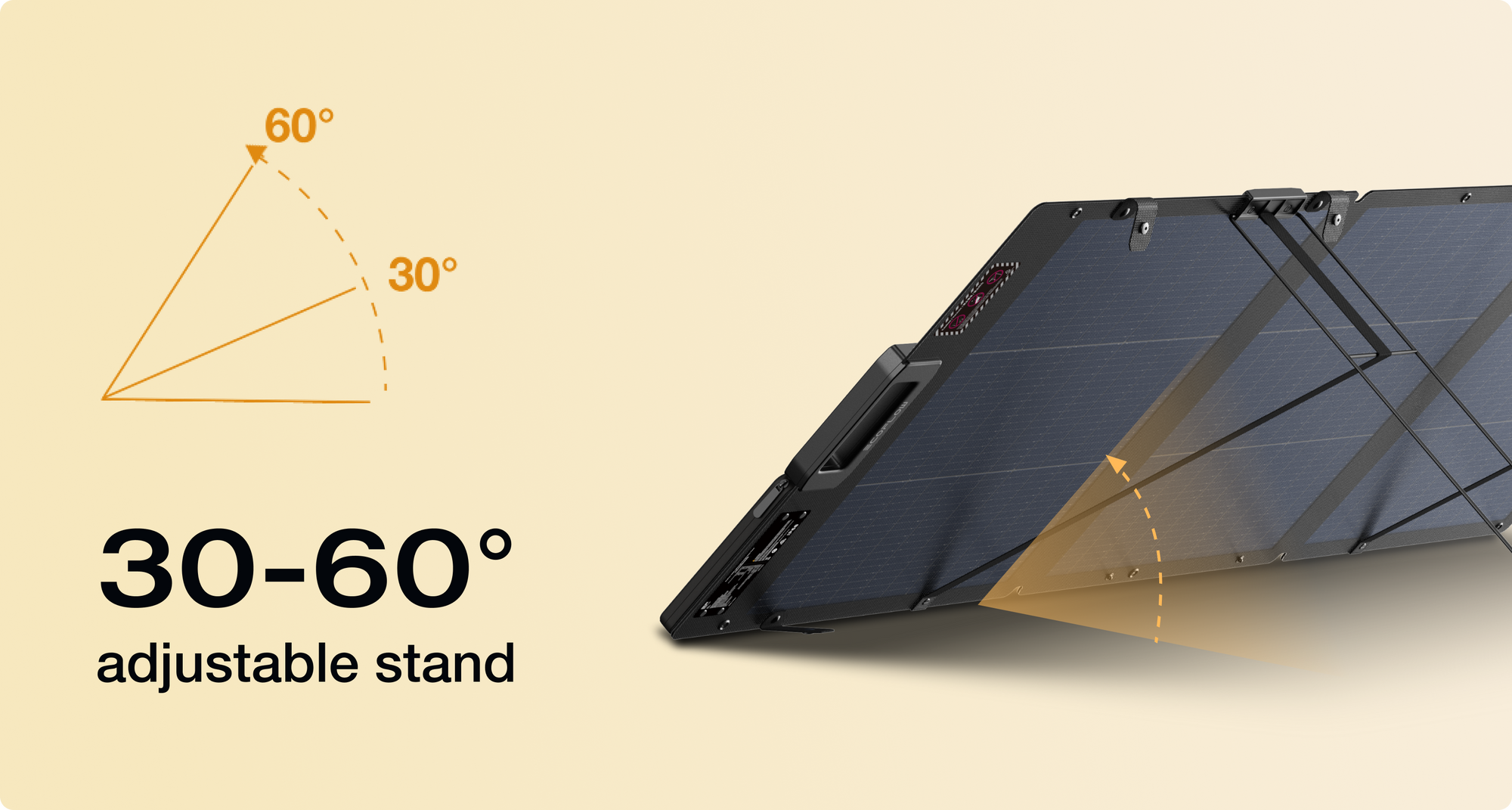

The folding integrated bracket offers a convenient and compact design. Adjustable from 30°-60°, it's ideal even for most high-latitude areas.
* If you need to hang solar panels for extended periods, please use rigid solar panels. Lightweight portable solar panels are not recommended for this scenario.

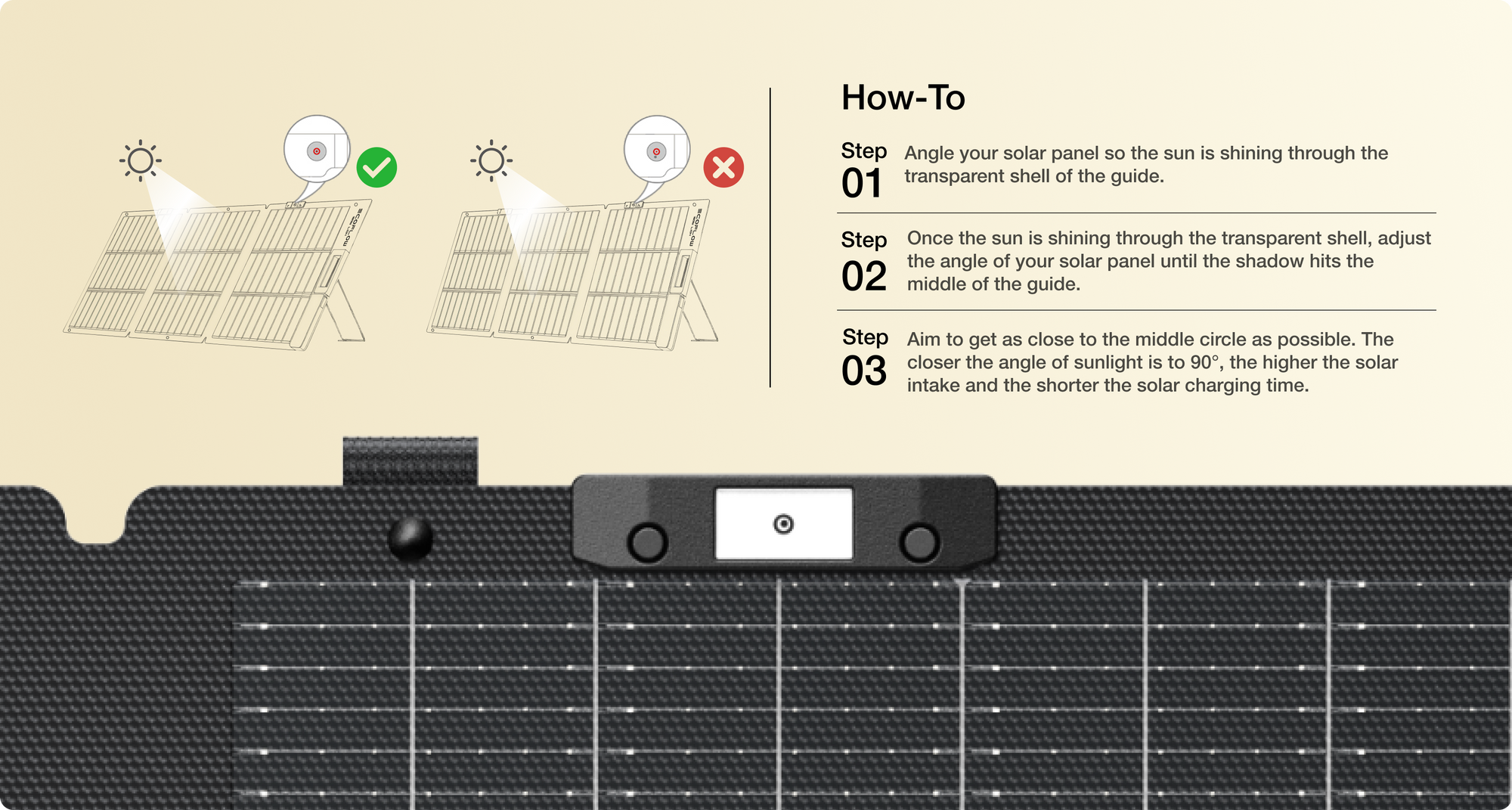

Integrated Solar Angle Guide
Keep sunlight at a 90° angle and concentrate the sun's rays onto the surface of your solar panel to get the most light at all times.
Durable and Water-Resistant
Built to Weather the Storm
With an IP68 water-resistance rating, our 160W Lightweight Portable Solar Panel maintains its high performance even when in contact with water, so you can safely recharge in wet conditions, such as seaside or on a boat.
No Overheating
Designed to withstand high temperatures while still ensuring high levels of solar generation.
5-Year Warranty

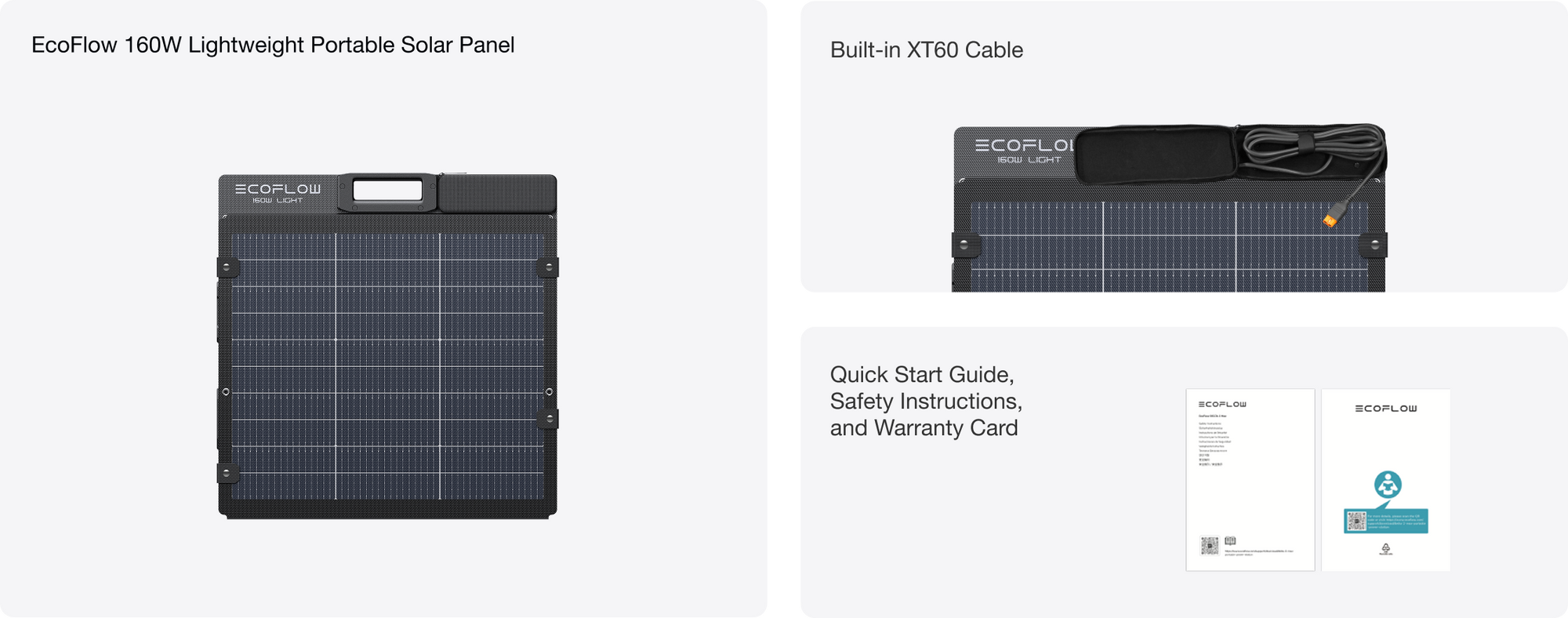

What’s in the box
Specs
Rated Power
STC 160W（±5W） / BNPI 177W（±5W）
Cell Type
N Type TOPCon monocrystalline silicon
Efficiency
25%
Weight (Solar Panel)
3.8kg±0.3kg
Dimensions
1677mm*598mm*26mm
Folded: 609mm*598mm*26mm
Connector Type
XT60
Built-in cable length: 8.20 feet
Warranty
5 Years
Open Circuit Voltage
21.4V（Vmp: 18.8V）
Short Circuit Current
STC 9.2A（Imp: 8.7A）
BNPI 10.2A（Imp: 9.6A）
Waterproof & Dustproof
IP68
FAQ
182.2 mm*183.75 mm N-type TOPCon cell
The solar panel has an XT60 connection cable, and the maximum output voltage is 21.4V. When using the solar panel with EcoFlow portable power stations, we recommend making sure that the solar panel's output current (voltage) should be lower than the portable power station's input current (voltage).
This solar panel has an IP68 rating and boasts outstanding waterproof performance. However, we recommend against extended exposure to moist environments, as this may reduce the device's lifespan.
This lightweight solar panel has an XT60 output port. It can be used to connect to EcoFlow portable power stations directly without the need for an adapter.
The optimal operating voltage is 18.8V, and the optimal operating current is 8.7A.
It is recommended to connect this solar panel to panels of the same model using a serial connection and use it together with EcoFlow portable power stations. When connected using a parallel connection, the current would be too high to adapt properly to the portable power station, so this setup is not recommended. The serial connection cables need to be purchased separately.
No extension cable currently available to purchase can be used together with this solar panel.
