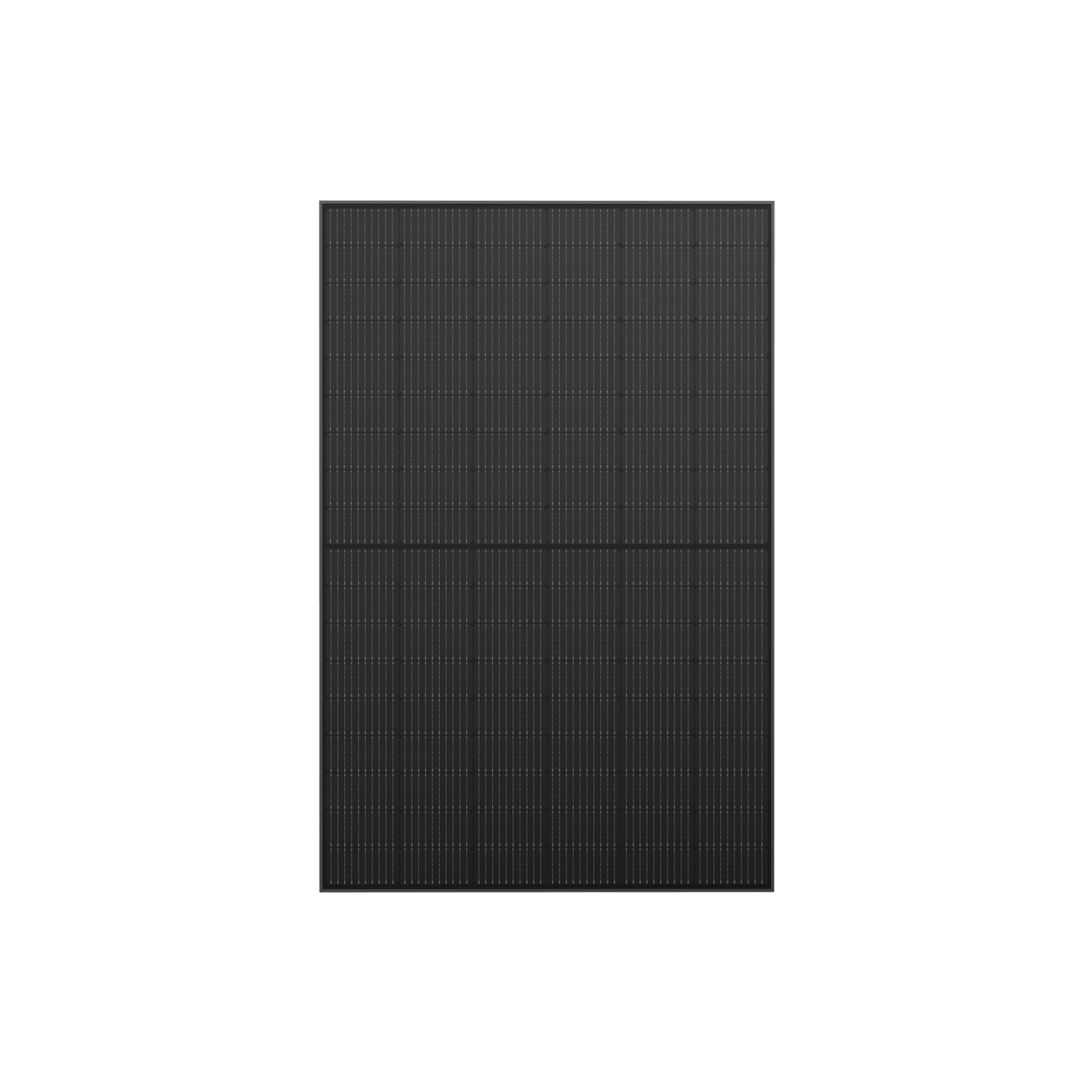

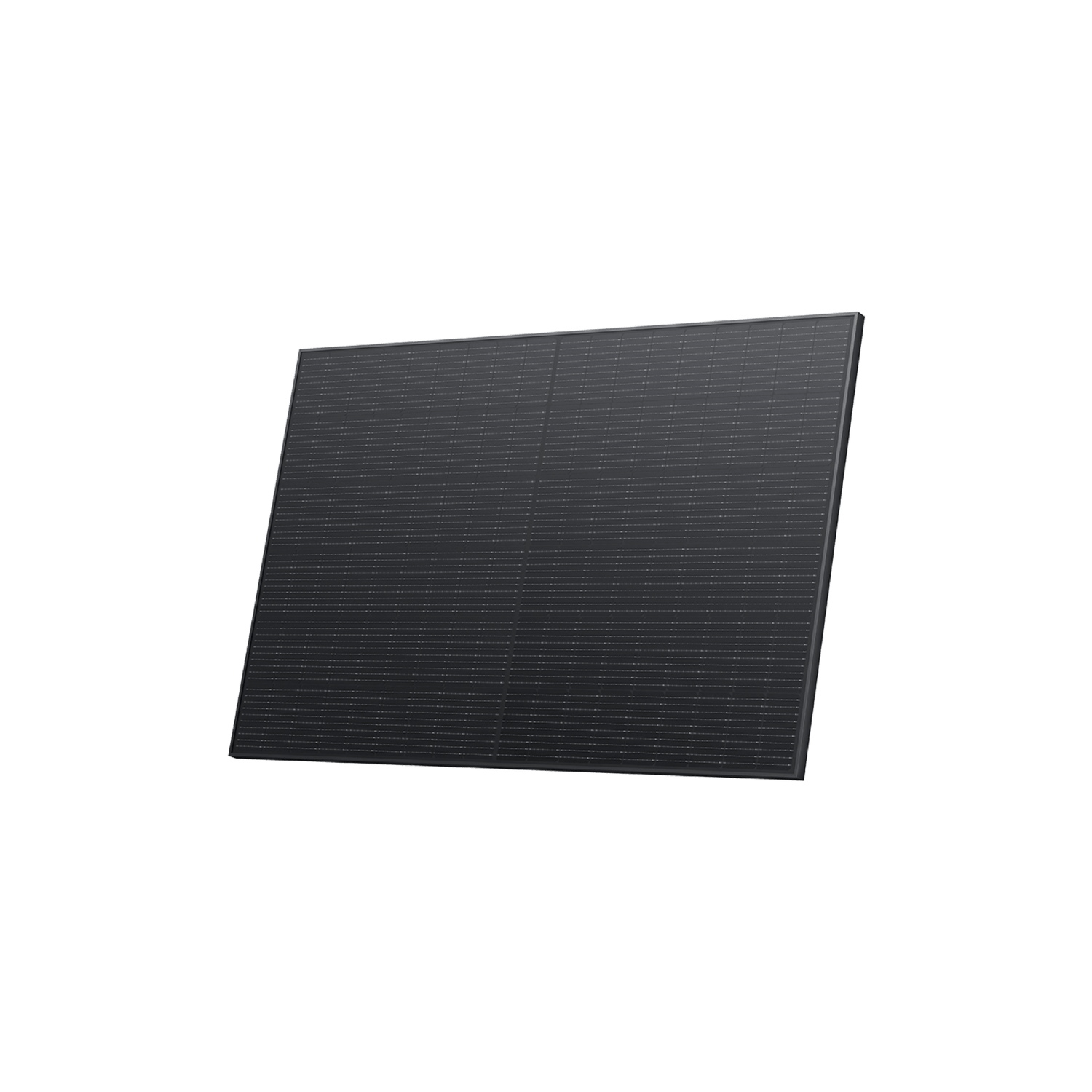

High Solar Energy Conversion
Made from highly efficient monocrystalline cells, the 400W rigid solar panel has an excellent efficiency rating of 23%, allowing you to charge faster than using similar-sized panels. Combine this panel as part of your existing PV system or Power Kits setup, and allow the integrated MPPT algorithm to optimize your solar input.
Waterproof & Durable
The 400W rigid solar panel is designed for the outdoors. With an IP68* waterproof rating and a robust anti-corrosive aluminum frame, the panel can withstand a wind speed of up to 130mph* and a significant snow load of up to 113lb* and continue to capture solar energy for years to come.
*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
*Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).

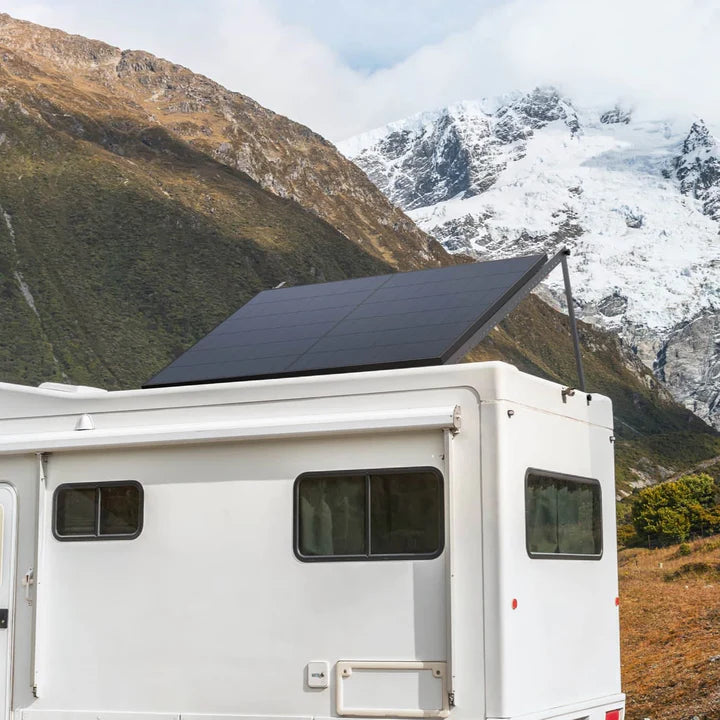

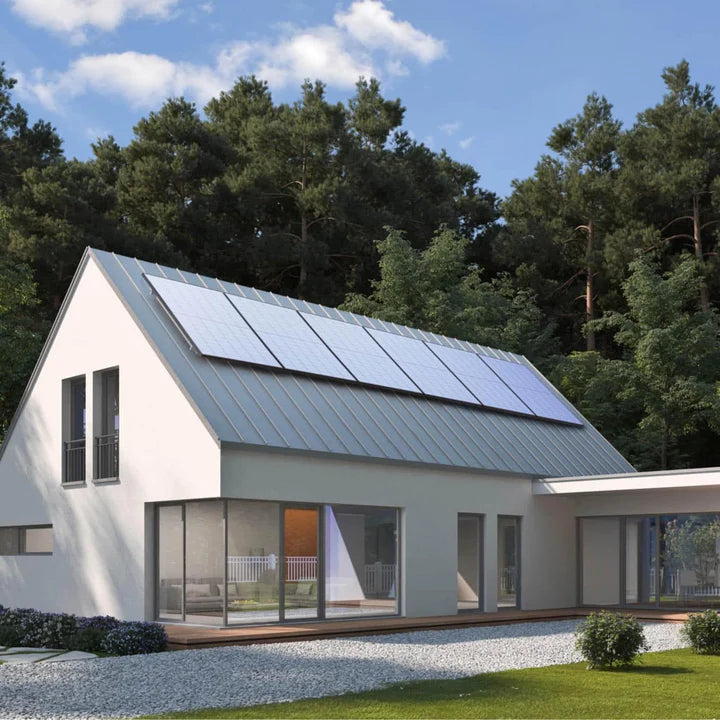

Off-grid & On-grid Solution
This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home.
Universally Compatible
EcoFlow solar panels use an all-inclusive solar connector, so you can even use them with your existing 48V power system. The 400W solar panel includes a 300mm charging cable that gives you plenty of space to mount multiple panels, maximizing solar input.
High Solar Energy Conversion
Made from highly efficient monocrystalline cells, the 400W rigid solar panel has an excellent efficiency rating of 23%, allowing you to charge faster than using similar-sized panels. Combine this panel as part of your existing PV system or Power Kits setup, and allow the integrated MPPT algorithm to optimize your solar input.
Waterproof & Durable
The 400W rigid solar panel is designed for the outdoors. With an IP68* waterproof rating and a robust anti-corrosive aluminum frame, the panel can withstand a wind speed of up to 130mph* and a significant snow load of up to 113lb* and continue to capture solar energy for years to come.
*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
*Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).
Off-grid & On-grid Solution
This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home.
Universally Compatible
EcoFlow solar panels use an all-inclusive solar connector, so you can even use them with your existing 48V power system. The 400W solar panel includes a 300mm charging cable that gives you plenty of space to mount multiple panels, maximizing solar input.
What's in the box?
1. 2×400W Rigid Solar Panel
2. User Manual and Warranty Card
3. Solar to XT60 Charging Cable

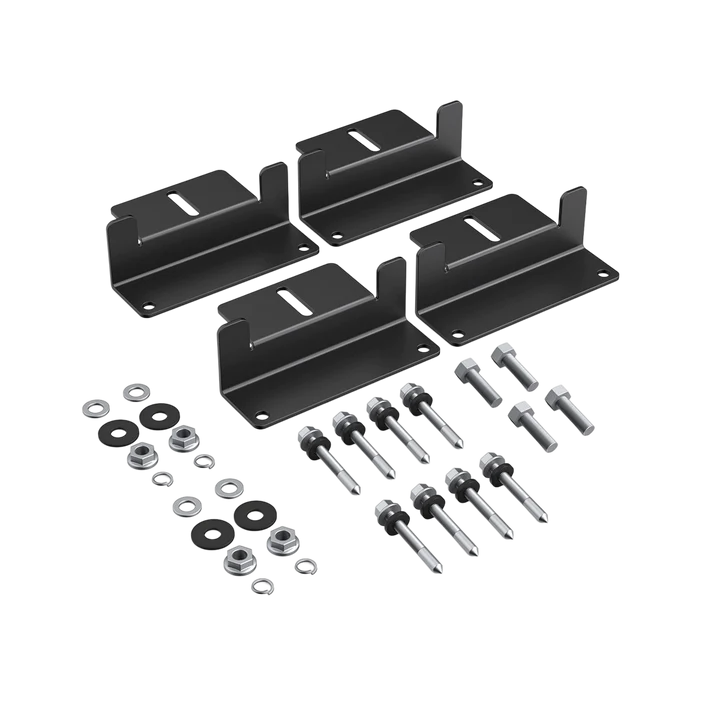

Installation Guide
400W Rigid Solar Panel
Short Circuit Current
13.79A
Open Circuit Voltage
37.10V
Connector Type
Solar Connector
Efficiency
23%
Cell Type
Monocrystalline
Rated Power
400W
Maximum Operating Voltage
31.00V
Maximum Operating Current
12.90A
Temperature Coefficient of Rated Power
-0.38%/°C
Temperature Coefficient of Open Circuit Voltage
-0.35%/°C
Temperature Coefficient of Short Circuit Current
0.06%/°C
Maximum Fuse Current
25A
Maximum System Voltage
1500V DC (UL)
Dimension (inch)
67.8×44.6×1.38
Net Weight (kg)
21.8kg
Dimension (cm)
172.2×113.4×3.5
Net weight (lbs)
48.1lbs
